Holographic LED Invisible Screen – MC-C Series
Ultra-Transparent Flexible LED Screen for Creative Glass Displays
P3.9/P6.25/P10.42
Holographic LED Invisible Screen for Glass Media Projects
Holographic LED Invisible Screen is a lightweight transparent LED solution designed for retail windows, glass curtain walls, showrooms, exhibitions and creative stage media. With up to 95% transparency, ≥5000-nit brightness, flexible bending and customizable cutting, the MC-C Series integrates digital content with glass while preserving natural light and background visibility. Its lightweight structure also supports faster installation without a conventional bulky LED cabinet.
HD Display
High Permeability
Ultra Thin and Light
Simple Setup
Ultra-high Brightness
High Contrast
Get Free Quote

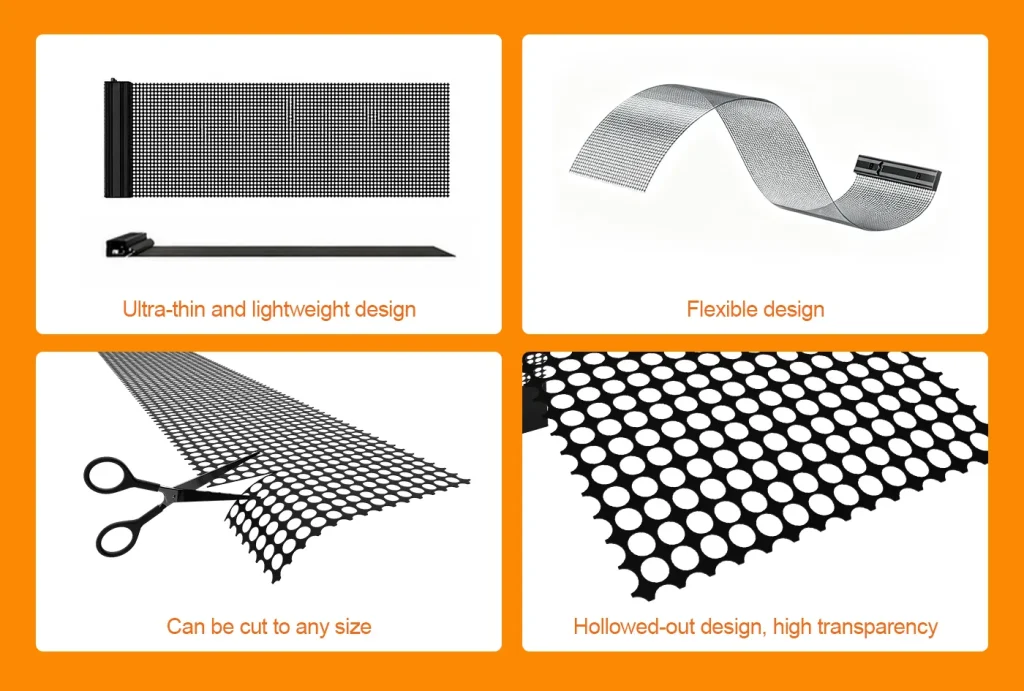

Ultra-Thin, Flexible & Cuttable Structure
The open-mesh structure combines lightweight construction, flexible bending and customizable cutting, allowing the screen to adapt to flat, curved and irregular glass while maintaining high transparency.

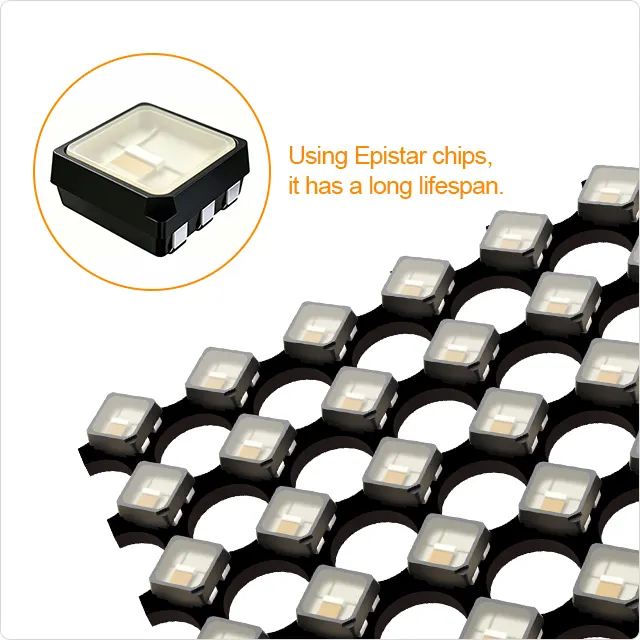

High-Quality LED Chips for Stable Performance
High-quality LED chips support stable light output, consistent color performance and reliable long-term operation for retail windows, exhibitions and commercial glass displays.

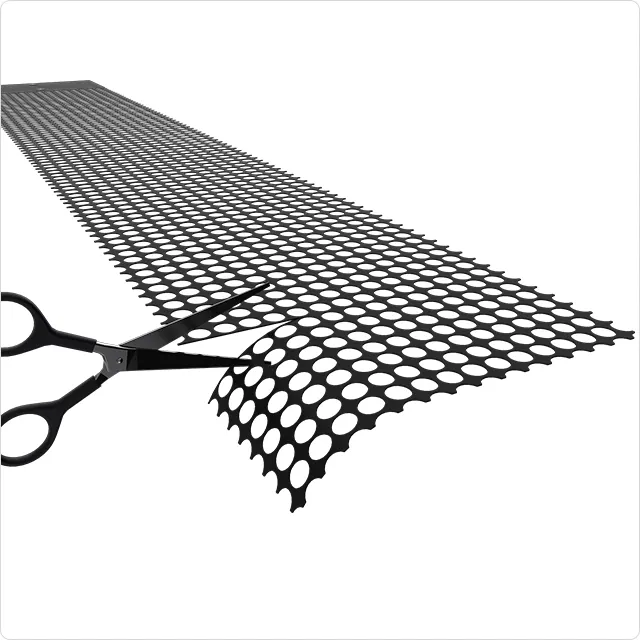

Free Cutting for Custom Glass Sizes
The flexible open-mesh screen can be cut and configured according to glass dimensions and project layouts, making it suitable for customized retail windows, curtain walls and irregular display surfaces.

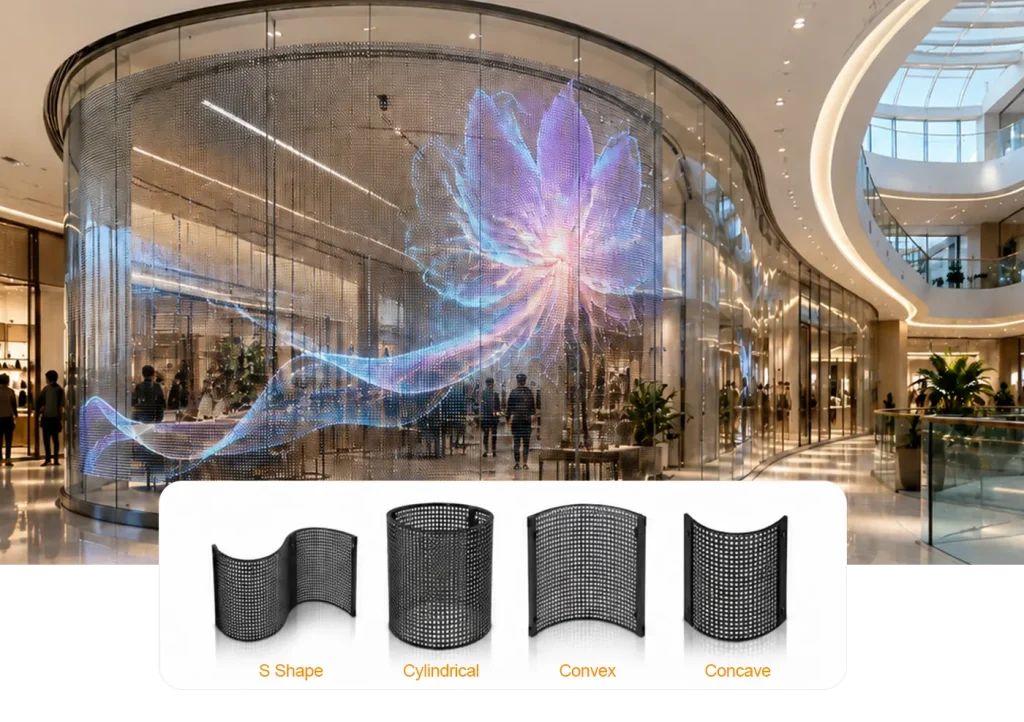

Flexible Curving for Creative Glass Shapes
The flexible structure supports S-shaped, cylindrical, convex and concave configurations, helping designers integrate transparent digital media with curved storefronts and creative architectural glass.

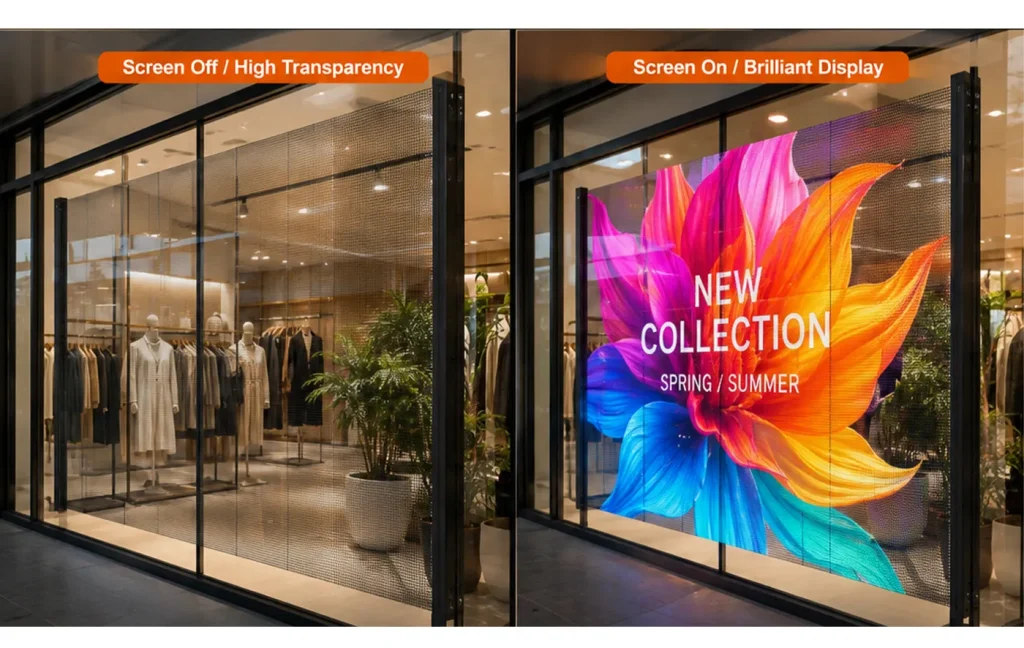

90%–95% Transparency with Clear Glass Visibility
With perceptual transparency of approximately 90%–95% depending on pixel pitch, the display keeps interiors, products and background views visible while delivering vivid digital content across the glass.

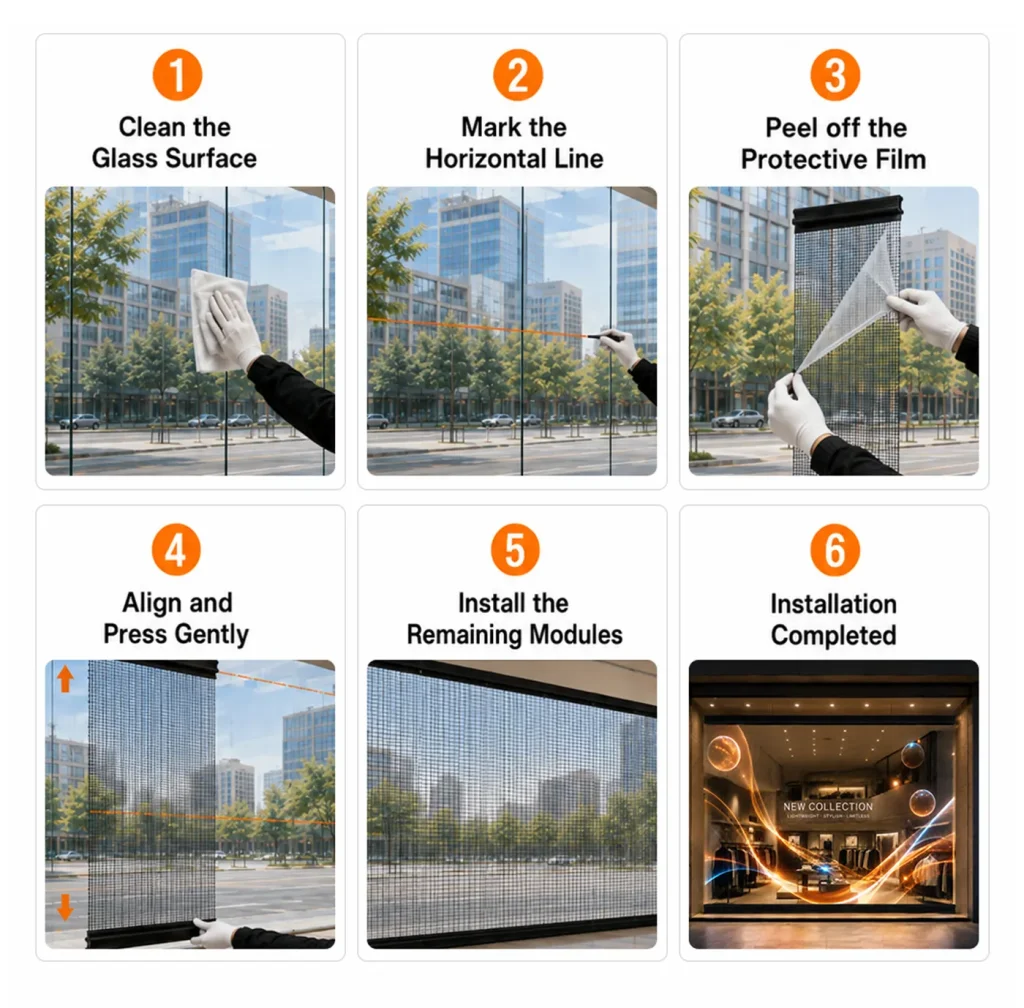

Direct Glass Installation in Simple Steps
The lightweight screen structure supports straightforward installation on suitable glass surfaces. Clear positioning and modular assembly help shorten installation time and reduce the need for heavy supporting structures.

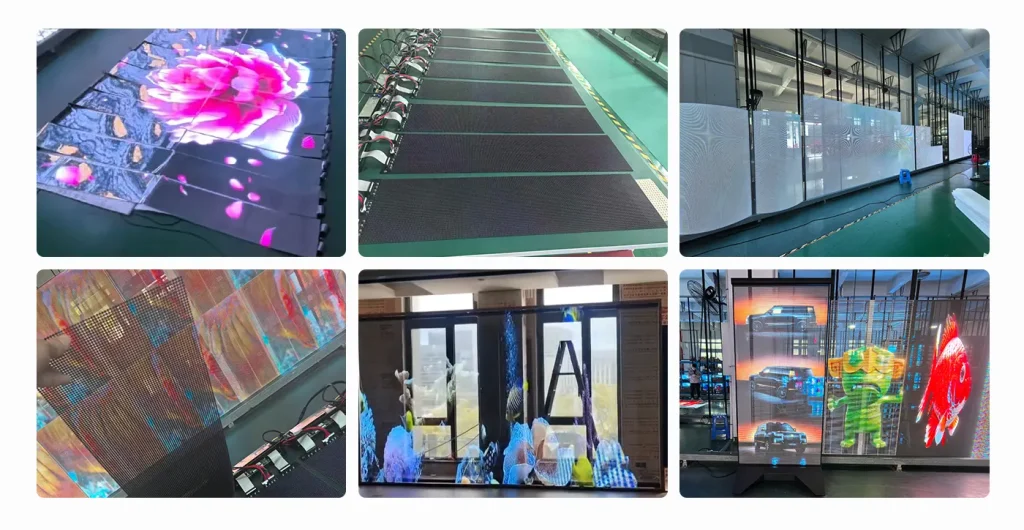

Production Testing & Display Verification
Display modules undergo assembly, lighting and visual performance checks to help verify image consistency and operating stability before project delivery.
Holographic LED Invisible Screen Applications
Holographic LED Invisible Screen combines high transparency, flexible shaping and vivid digital visuals for glass-based commercial projects. It is suitable for retail windows, curtain walls, exhibition stages, mall railings, hotel lobbies and automotive showrooms where digital content needs to coexist with transparent architecture.
Curtain Wall Holographic Screen
Retail Window Holographic Display
Stage Exhibition Holographic Media
Glass Railing Curved Holographic Screen
Lobby Glass Holographic Display
Auto Showroom Holographic LED Screen
Complete Specifications
| Item | P3.9 | P6.25 | P10.42 |
| Pixel Pitch(mm) | 3.9*3.9mm | 6.25*6.25mm | 10.42*10.42mm |
| Perceptual Transparency | 90% | 95% | 95% |
| Pixel Density(dot/m²) | 65746 | 25600 | 9210 |
| Cabinet Size(mm) | 1000x250\1200x250\1500x250 | ||
| Weight(Kg/m²) | 6 | ||
| brightness(cd/m²) | ≥5000 | ||
| Package Form | Light Driver Integrated Package | ||
| Scanning Method | Single Point Single Control, Static Drive | ||
| Lamp Working Life | ≥100000 Hours | ||
| Gray Scale | 16Bit | ||
| Maximum Power Consumption(W/m²) | 800 | ||
| Average Power Consumption(W/m²) | 200 | ||
| LED Control System | Same/Asynchronous | ||
| Input Voltage | AC100~240V50/60Hz | ||
| Module Working Voltage | DC4.2V±0.2V | ||
Note: Specifications are subject to change without notice. Custom configurations available upon request. Contact our sales team for detailed technical documentation and CAD drawings.
Frequently Asked Questions
-
What is a Holographic LED Invisible Screen?
-
It is a highly transparent flexible LED screen designed for glass surfaces, combining digital visuals with minimal obstruction of the background.
-
How transparent is the Holographic LED Invisible Screen?
-
Depending on pixel pitch, perceptual transparency ranges from approximately 90% to 95%.
-
What pixel pitches are available?
-
The MC-C Series is currently available in P3.9, P6.25 and P10.42 configurations.
-
Can the screen be installed on curved glass?
-
Yes. Its flexible structure supports convex, concave, cylindrical and other customized curved configurations.
-
Can the screen be cut to custom sizes?
-
Yes. The open-mesh structure supports customized cutting according to glass dimensions and project requirements.
-
Where is a Holographic LED Invisible Screen commonly used?
-
It is suitable for retail windows, shopping malls, showrooms, curtain walls, exhibitions, stages and other creative glass media projects.
