Outdoor Aluminum LED Display – MS Series
Waterproof, High Refresh, Front & Rear Maintainable
P2.976/P3.91/P4.81/P6.25/P7.81/P10.42
Outdoor Aluminum LED Display
Outdoor Aluminum LED Display is designed for building facades, commercial plazas, roadside billboards, transportation hubs, stadiums, and other long-term outdoor advertising projects. The MS Series combines a lightweight aluminum cabinet, efficient heat dissipation, IP65 protection, 3840Hz refresh rate, hard-connected modules, and front/rear maintenance to simplify installation and long-term servicing.
Energy saving
High Brightness
3840 Hz
Wide Viewing Angle
Front/Rear access
High Grayscale
Get Free Quote

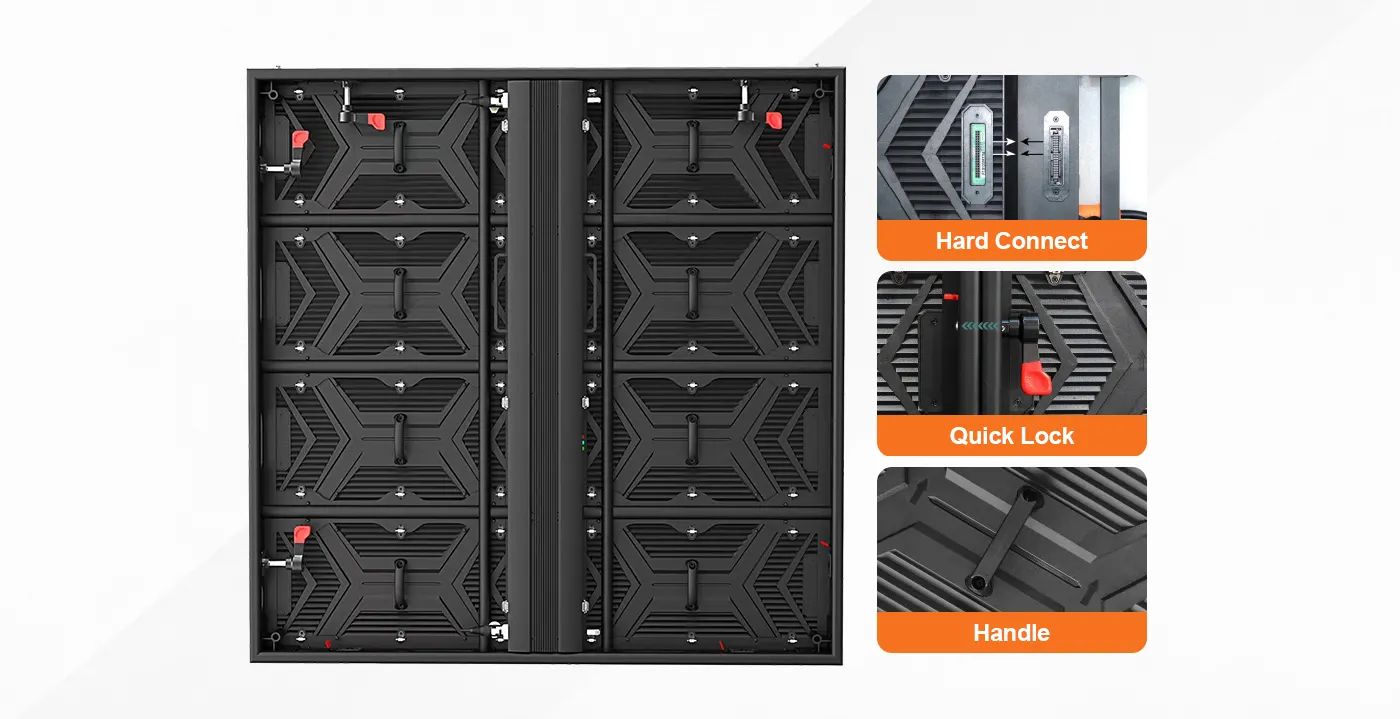

Integrated Aluminum Cabinet Hardware
Hard connections, quick locks, and integrated handles simplify cabinet assembly, alignment, handling, and maintenance. The practical hardware design supports efficient installation for long-term outdoor LED projects.

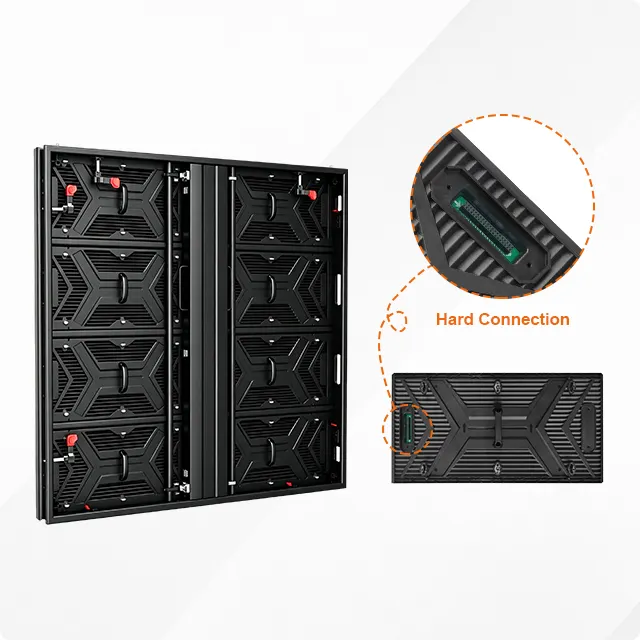

Stable Hard-Connection Design
Rigid hard connectors reduce loose internal connections and unnecessary cabling, helping improve module stability during installation, maintenance, and long-term outdoor operation.

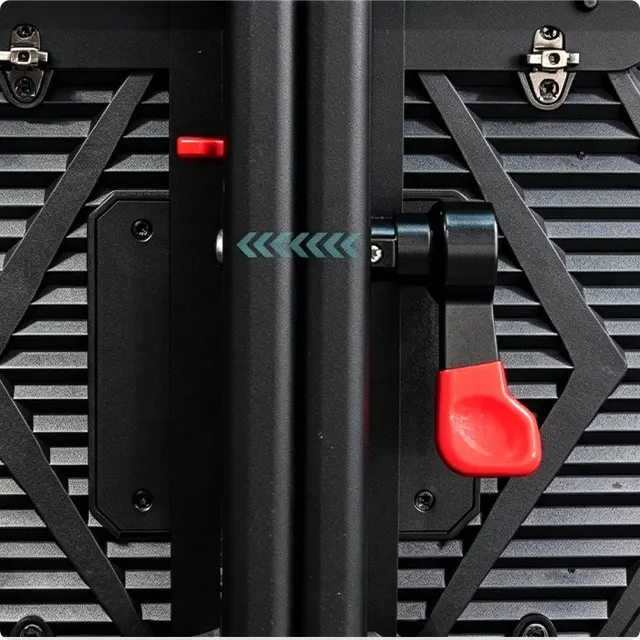

Quick-Lock Cabinet Installation
Integrated quick locks allow neighboring cabinets to connect and align efficiently, helping reduce installation time for large building facades, commercial displays, and outdoor advertising projects.
Lightweight Aluminum Cabinet
The lightweight aluminum cabinet reduces structural load and simplifies transportation, lifting, installation, and maintenance. It is particularly suitable for building facades and large fixed outdoor LED projects.

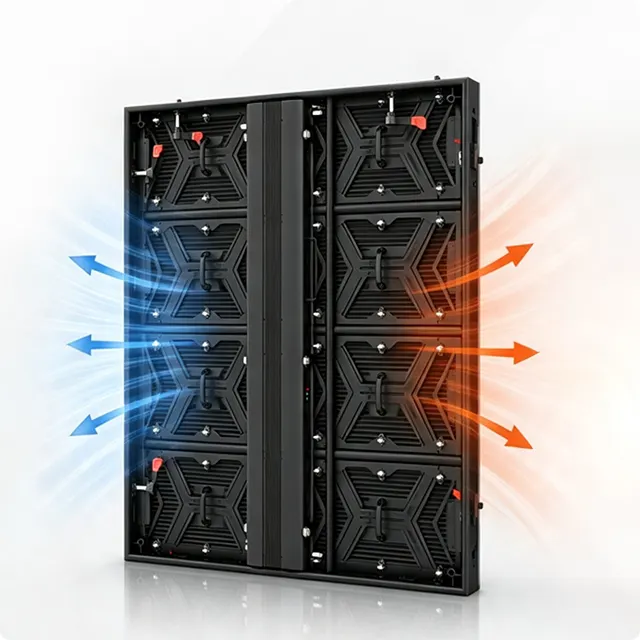

Efficient Aluminum Heat Dissipation
The aluminum cabinet provides efficient thermal conductivity to help release internal heat and maintain stable screen performance during extended outdoor operation.

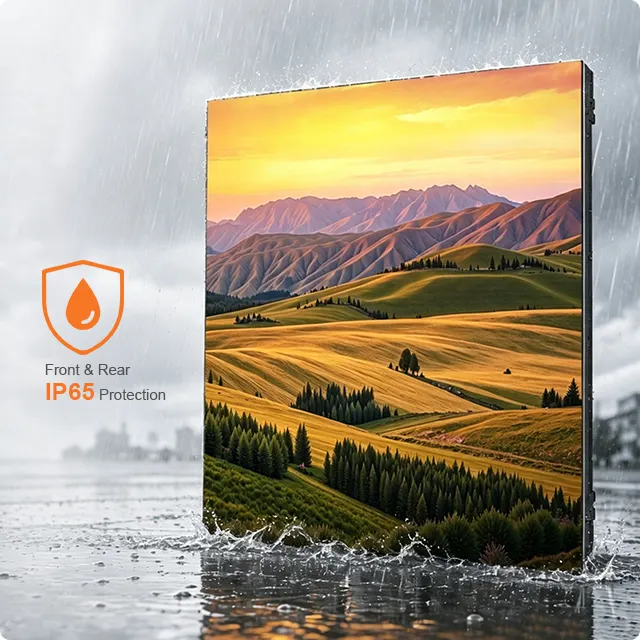

IP65 Front & Rear Outdoor Protection
IP65 front and rear protection helps defend the cabinet against rain and dust, supporting reliable operation for building facades, roadside advertising, stadiums, and other outdoor environments.

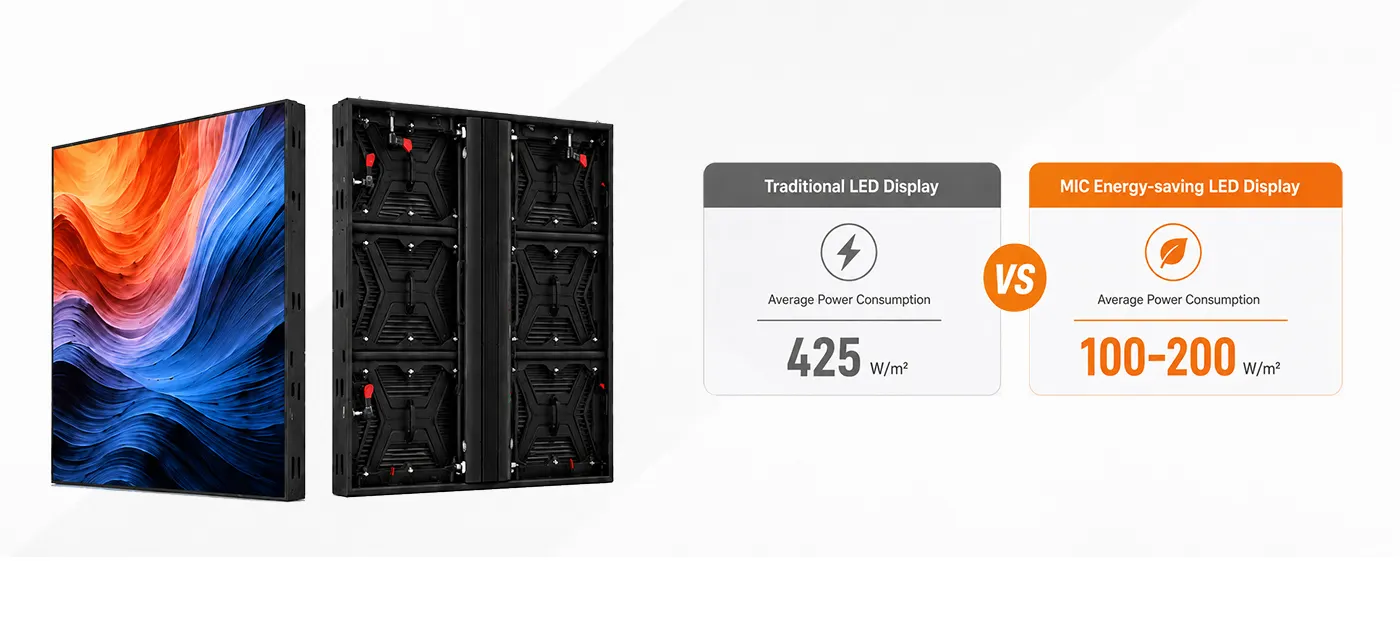

Energy-Saving Outdoor Operation
Average power consumption of 100–200 W/m² helps reduce electricity use and long-term operating costs for large outdoor advertising displays and fixed commercial installations.

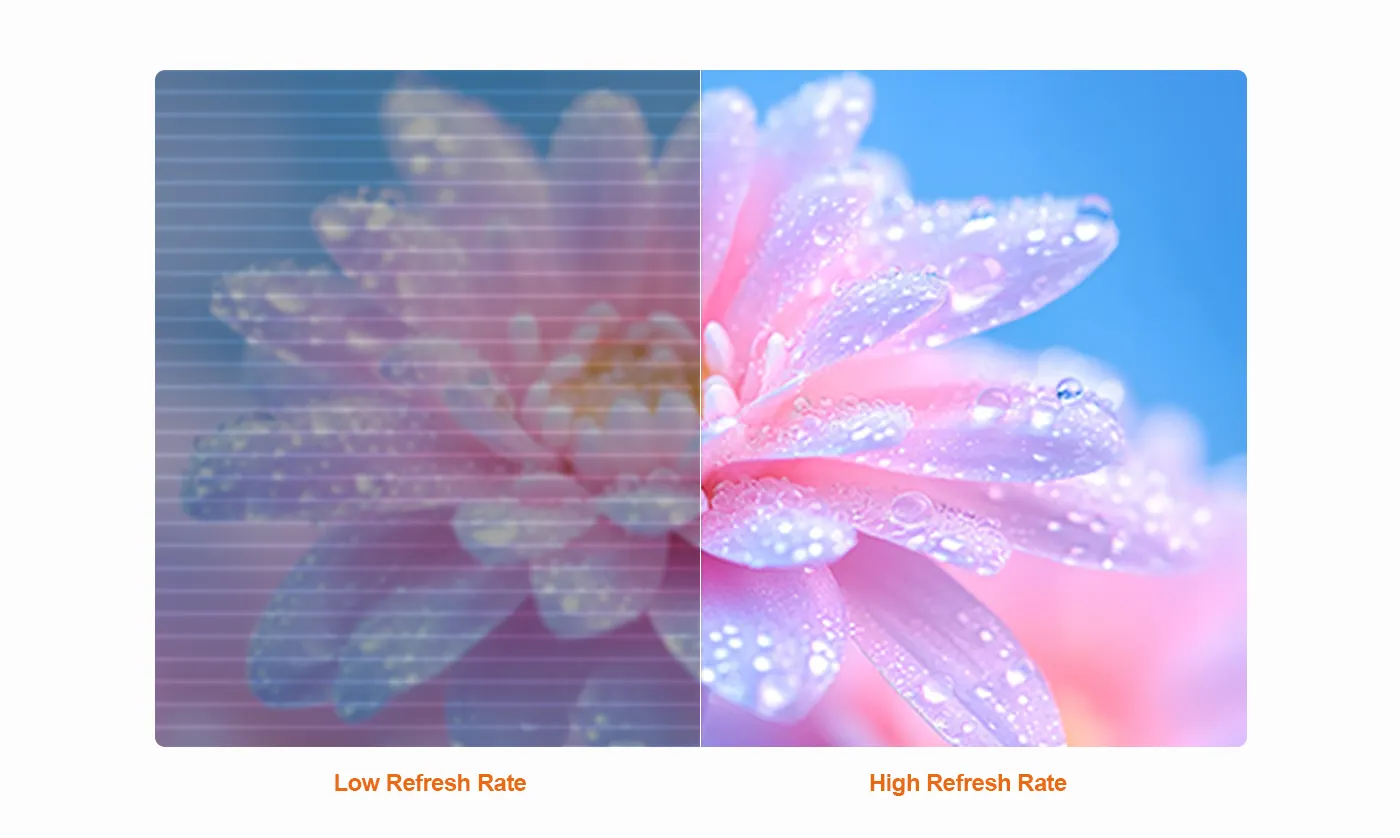

3840Hz High-Refresh Visual Performance
A 3840Hz refresh rate, 15000:1 contrast ratio, and 16-bit grayscale support smooth, detailed visuals for outdoor advertising, video playback, live content, and camera shooting.

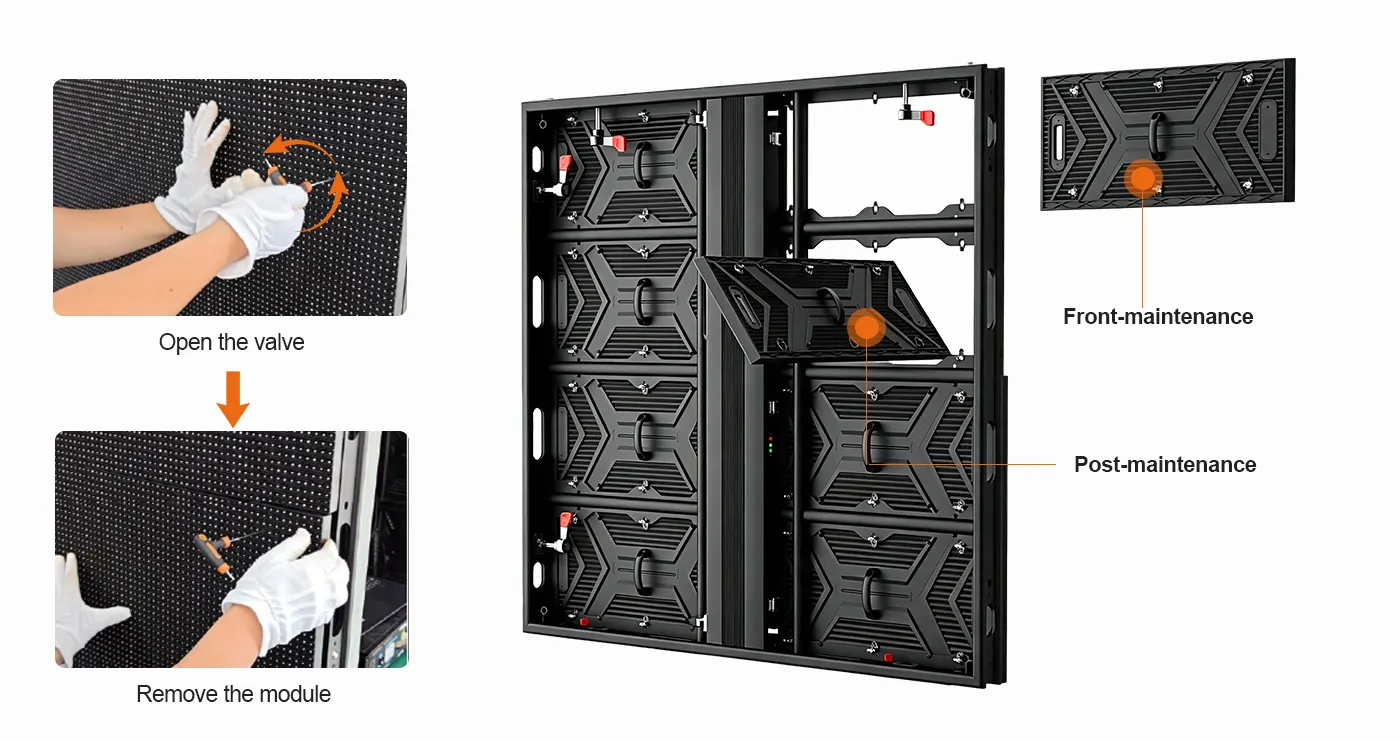

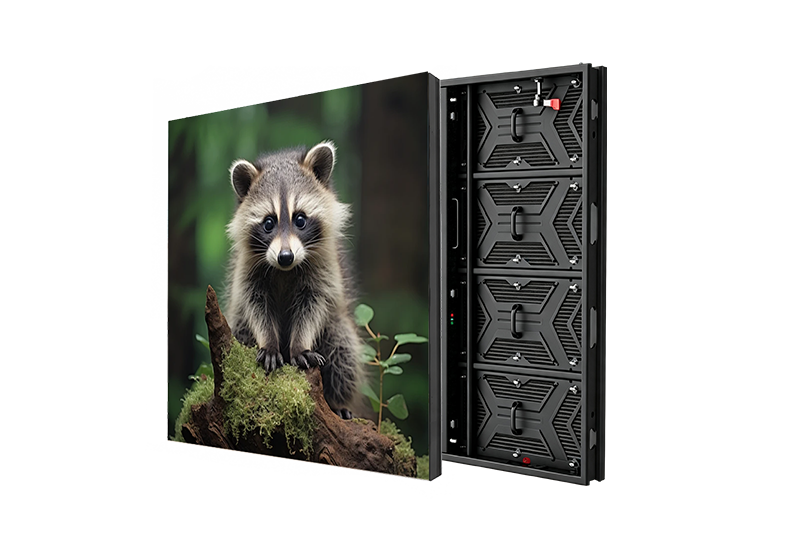

Front & Rear Maintenance Access
Dual-side service access allows technicians to maintain LED modules and internal components from either the front or rear, making maintenance more flexible for different fixed installation environments.

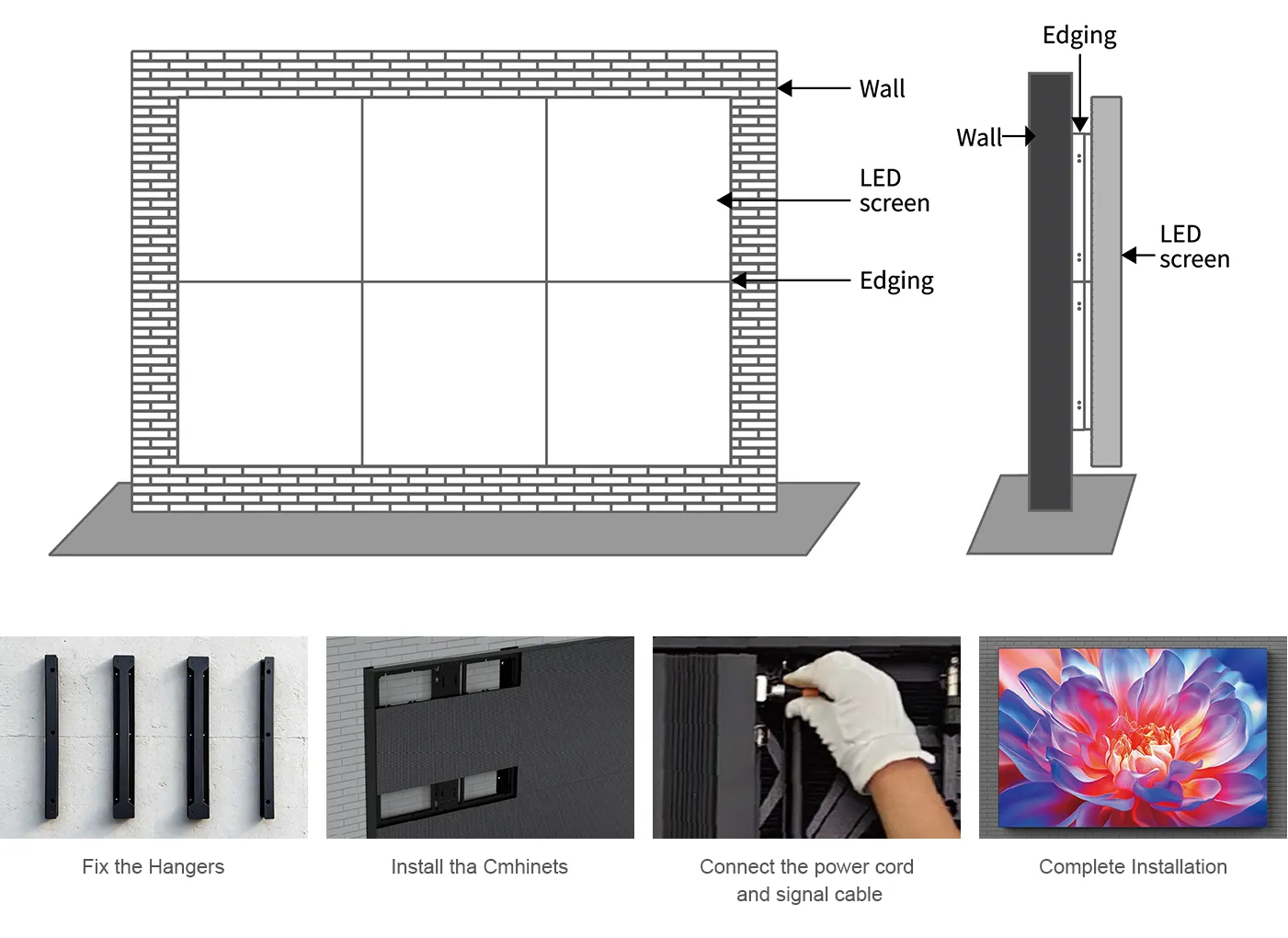

Flexible Fixed Installation Options
The MS Series supports wall-mounted, freestanding, and recessed installation, allowing the screen structure to adapt to building facades, commercial sites, transportation hubs, and other outdoor projects.
Applications
Our outdoor aluminum LED display is designed for long-term outdoor fixed installation. It can be deployed in commercial plazas, shopping center facades, urban roadside billboards, highway advertising signs, airport & subway transportation hubs, sports stadiums, campus information screens, and building exterior wall media.
Curved Outdoor Aluminum LED Screen for Airport Terminal
Curved LED Display on Shopping Mall Facade
Wall-mounted Outdoor Aluminum LED Screen for Building Exterior
Freestanding Pillar Outdoor LED Billboard for Equestrian Park
Corner Wrapped Outdoor LED Display for Ski Resort
Stone Wall Embedded Outdoor Aluminum LED Screen for Wildlife Park
| Specification | P2.976 | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 |
| Pixel pitch | 2.976mm | 3.91mm | 4.81mm | 6.25mm | 7.81mm | 10.42mm |
| LED encapsulation mode | 1415 lamp | 1921 lamp | 1921 lamp | 2727 lamp | 2727 lamp | 2727 lamp |
| LED beads | Nationstar | Nationstar | Nationstar | Nationstar | Nationstar | Nationstar |
| Pixel density | 112896 pixel/sqm | 65536 pixel/sqm | 43264 pixel/sqm | 25600 pixel/sqm | 16384 pixel/sqm | 9216 pixel/sqm |
| Module dimension | 500*250mm | 500*250mm | 500*250mm | 500*250mm | 500*250mm | 500*250mm |
| Module resolution | 168*84 pixels | 128*64 pixels | 104*52 pixels | 80*40 pixels | 64*32 pixels | 48*24 pixels |
| Cabinet dimension | 1000*1000mm/1000*500mm/1500*1000mm/1500*500mm | |||||
| Driving Method | 1/21 scan | 1/16 scan / 1/8 scan | 1/13 scan / 1/7 scan | 1/8 scan | 1/4 scan | 1/2 scan |
| Cabinet material | Aluminum | |||||
| Cabinet weight | 22.5kg / 12.5kg/32.5kg/18kg | |||||
| Driver IC | High-refresh-rate PWM chip | |||||
| Refresh rate | 3840HZ | |||||
| Color temperature | Adjustable from 5000K~12000K | |||||
| Contrast ratio | 15000:1 | |||||
| Brightness | ≥4500nits | |||||
| Luminance uniformity | 97% | |||||
| Color gamut | 95%~99% DCI-P3 | |||||
| Color uniformity | ±0.003 Cx, Cy | |||||
| Viewing Angle | Horizontal 140°/ Vertical 160°(Optaional) | |||||
| Grey scale | 16 bits | |||||
| Receiving card | Nova | |||||
| Power consumption | Max: 650W/sqm,Average:100-200W/sqm | |||||
| LED lifetime | Up to 100,000 hours | |||||
| Operating Voltage | AC100-240V,50/60Hz | |||||
| Working temperature | -20℃~60℃ | |||||
| Working humidity | 10%-85% RH | |||||
| Waterproof | IP65 | |||||
| Support Mode | RF / S-Video / RGB / RGBHV / YUV / YC | |||||
| Net weight | 178kg(7in1)/215kg(8in1) | |||||
| Gross weight | 203kg(7in1)/240kg(8in1) | |||||
| Size of case | 1060*780*1170mm/1060*920*1170mm | |||||
| Total capacity | 0.967cbm/1.141cbm | |||||
Frequently Asked Questions
-
What is an Outdoor Aluminum LED Display?
-
An Outdoor Aluminum LED Display uses a lightweight aluminum cabinet designed for fixed outdoor advertising, building facades, commercial spaces, and large public displays.
-
Why use an aluminum cabinet for an outdoor LED display?
-
Aluminum helps reduce cabinet weight while providing good structural strength and heat dissipation for long-term outdoor operation.
-
Is the MS Series waterproof?
-
Yes. The current MS Series specification provides IP65 front and rear protection for outdoor use.
-
What pixel pitches are available?
-
The MS Series is available in P2.976, P3.91, P4.81, P6.25, P7.81, and P10.42 configurations.
-
Does the screen support front maintenance?
-
Yes. The cabinet supports both front and rear maintenance to suit different installation and servicing conditions.
-
Where can an Outdoor Aluminum LED Display be installed?
-
It can be used for building facades, shopping centers, roadside advertising, transportation hubs, stadiums, commercial plazas, and other fixed outdoor projects.
