P0.78/P0.93/P1.25/P1.56/P1.875
Completely Upgraded
High Refresh Rate Chip
Energy Saving
3840Hz
High Grayscale
Long Service Life
Standard Unit Board
Get Free Quote
Product Details
COB LED Display Parameters

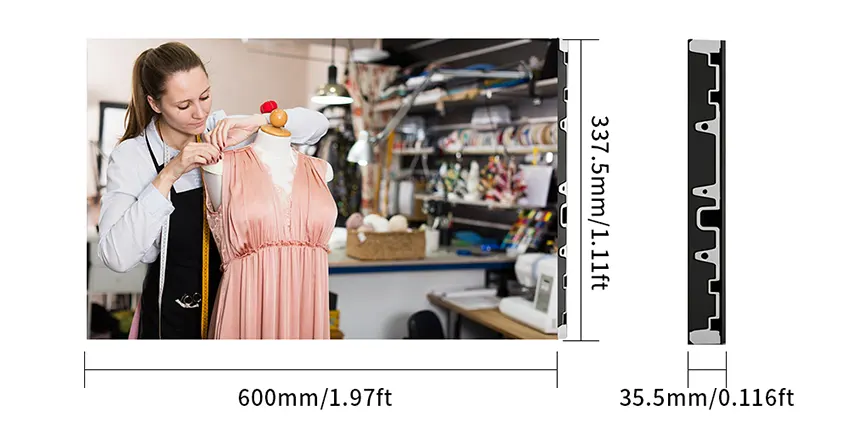

150×168.75mm aluminum modules + die-cast aluminum cabinet. 4kg lightweight & 35.5mm ultra-thin, less wall load for all complex installations.

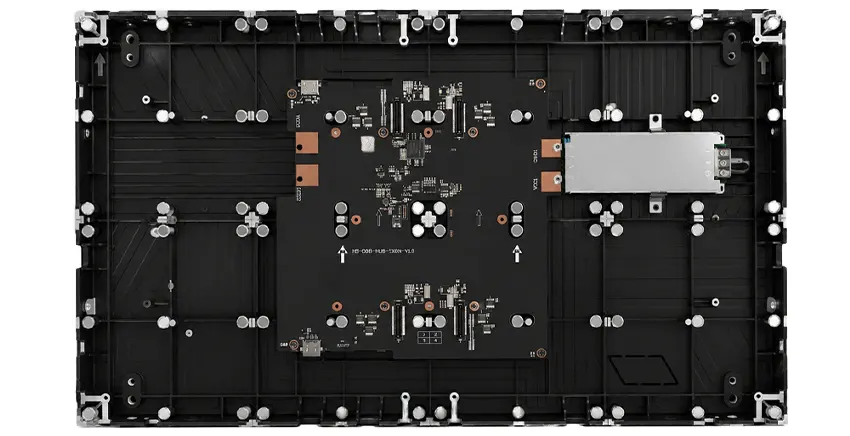

Cabinet Details
Hidden wiring design with aviation connectors & inner tail cover, neater look, better waterproofing and faster installation.
Die-Cast Aluminum Housing
- Light & rigid, seamless splicing, fast assembly, efficient heat dissipation.
Ultralight Cabinet
- Only 4kg ultra-light cabinet, easy to carry and install.
Ultra Thin Cabinet
- Only 35.5mm(0.116ft) ultra-slim thickness, space-saving & neat installation.

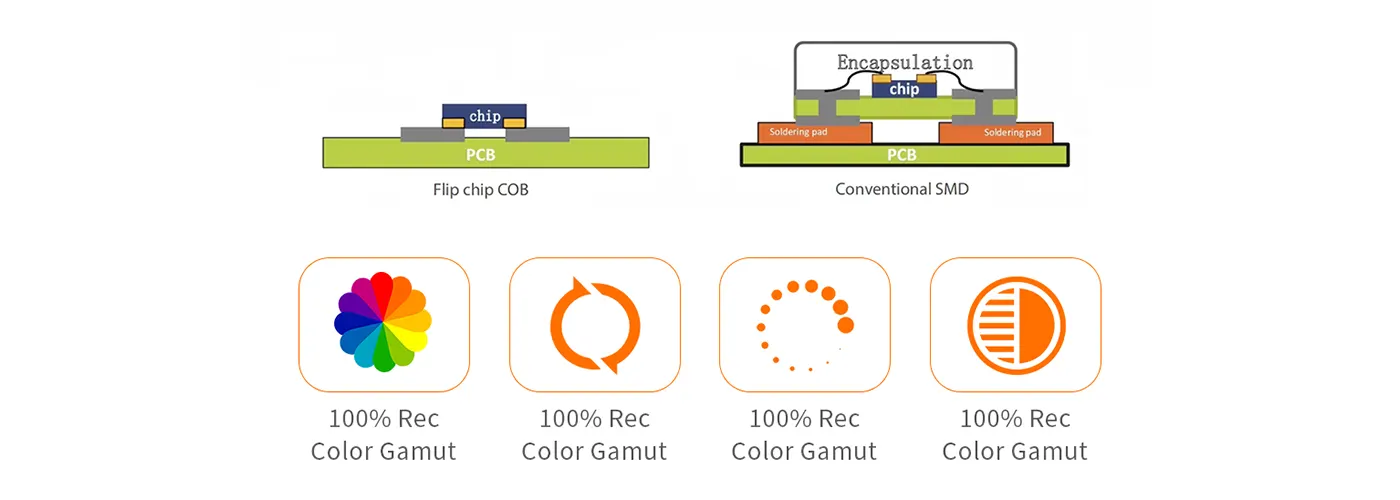

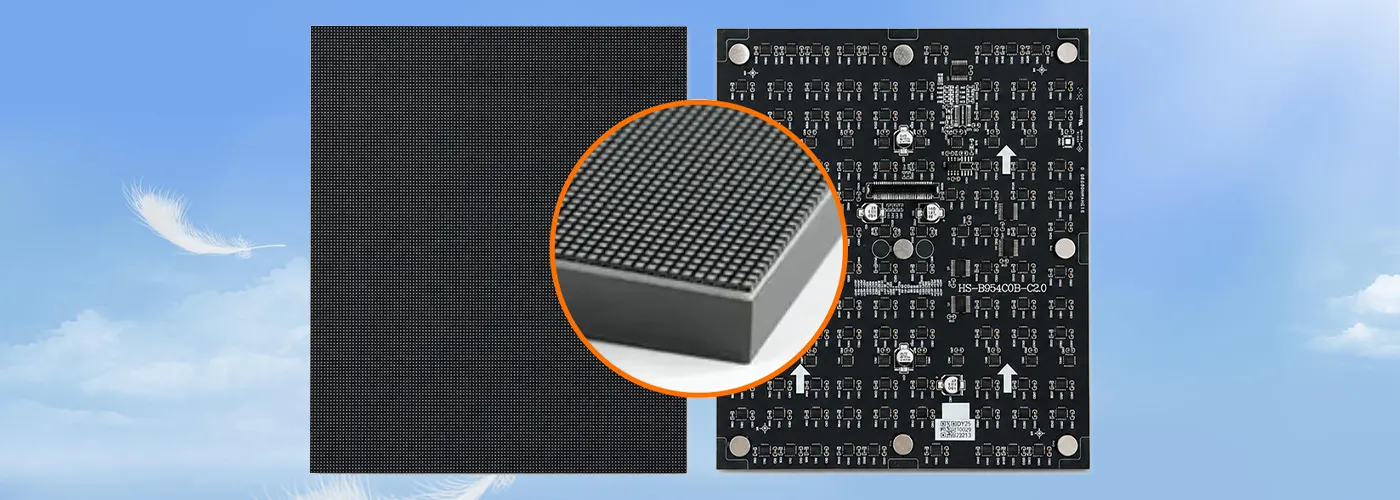

Full Flip Chip COB Panel LED
Chips are directly mounted on the PCB board, eliminating brackets and wire bonding for integrated design.
Wider Color Gamut
Covers full 100% Rec color gamut, richer & vivid natural colors.
4K ultra HD brings crisp, lifelike details for every scene.

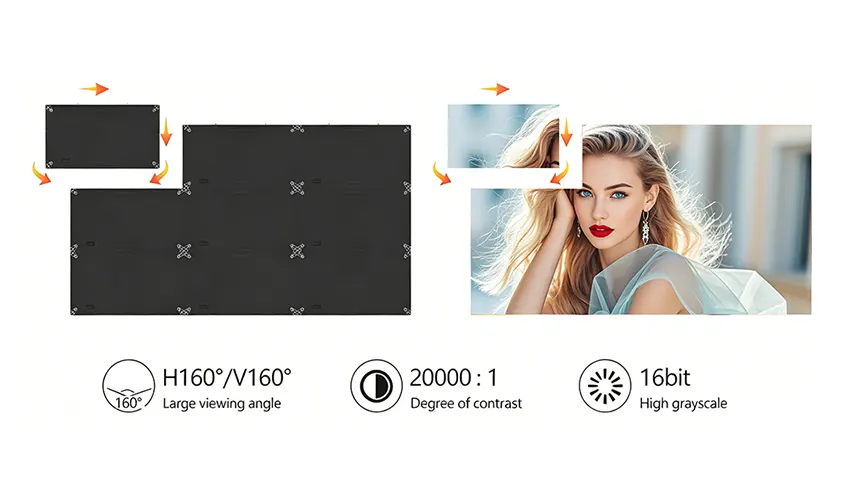

Seamless Splicing
Die-casting Aluminum Cabinet structure with CNC high-precision processing (Flatness of Cabinets 0.1mm). Screwless design for faster and more secure installation. Super silent fanless design.

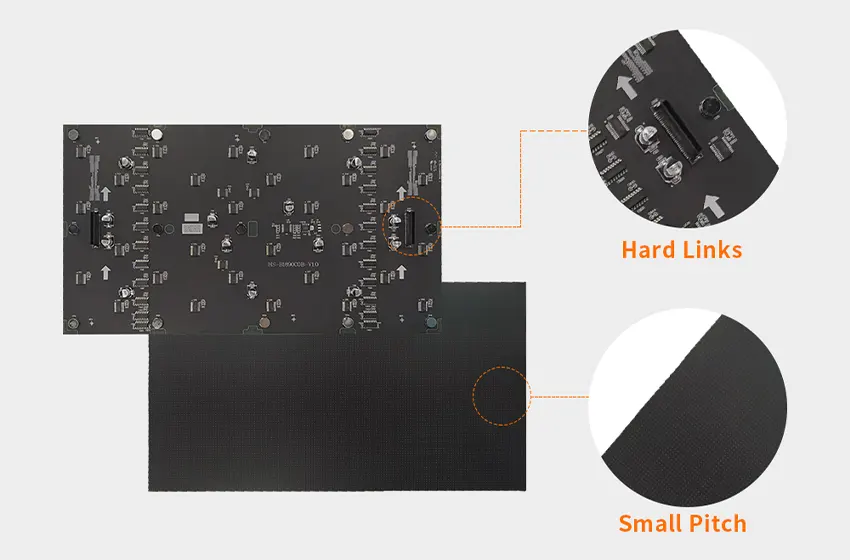

Hard Link Module COB Series
- Module Size: 150×168.75mm/300×168.75mm
- Pixel Pitch: 0.78mm/0.93mm/1.25mm/1.53mm

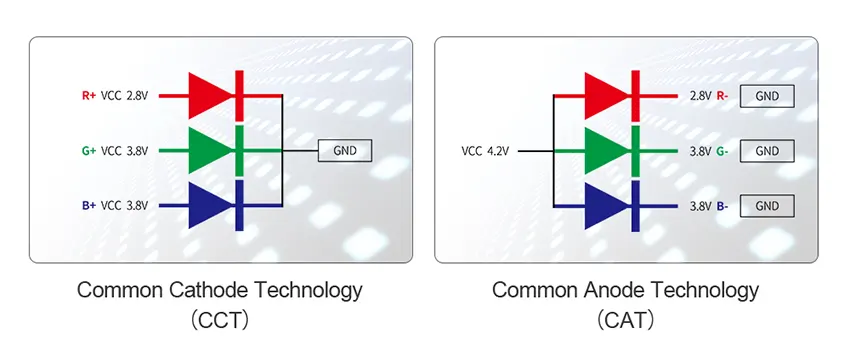

Common Cathode Technology
Compared to other DLP products, our product saves energy by 50%, leading to lower operational costs and higher ROI.
High-Quality LED Display
This series delivers 14-16 bit grayscale and up to 3840Hz refresh rate for premium, eye-catching visuals.

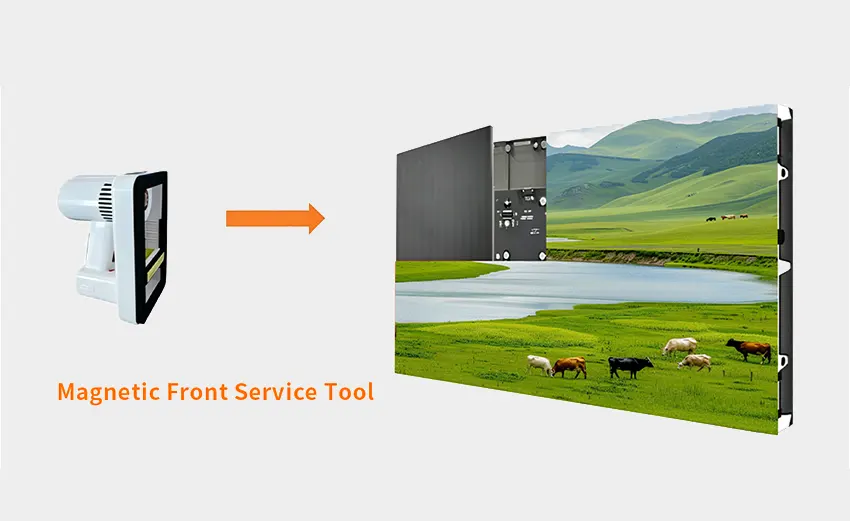

Front Maintenance
Turn on the main switch, attach the suction cup to the module center, press the touch button, smoothly pull out and support the module. Tap the button again to stop the motor, then switch off the main power.

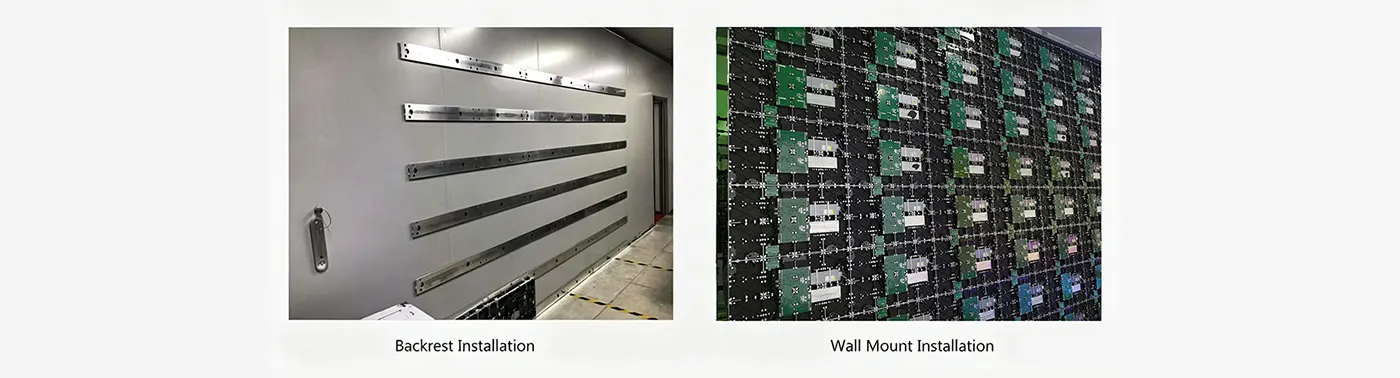

Installation Structure
The quick-lock design makes the installation and disassembly simple and quick.
Buyer Feedback
Gold Partner

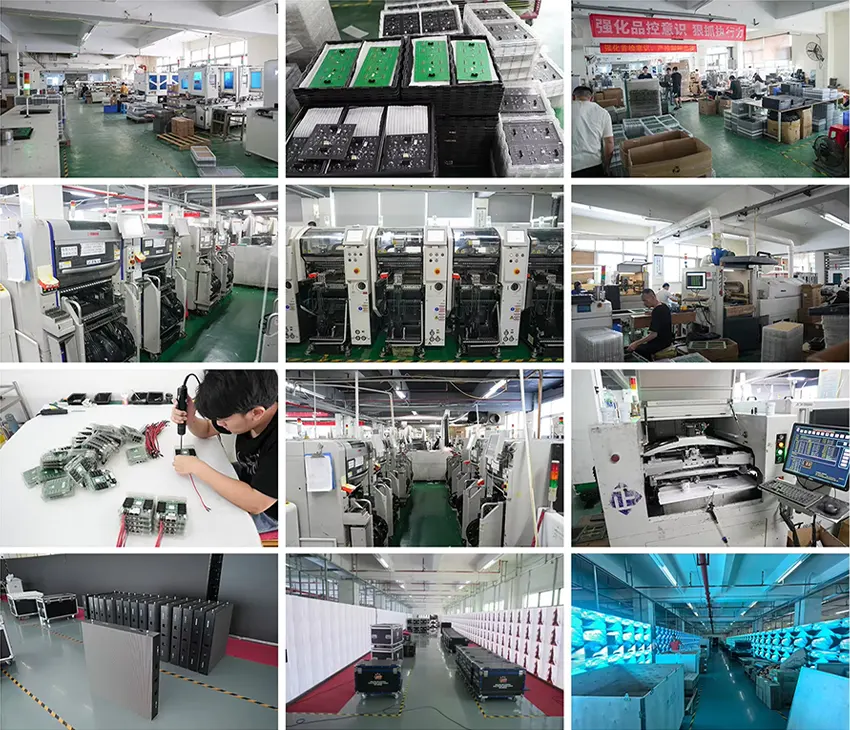

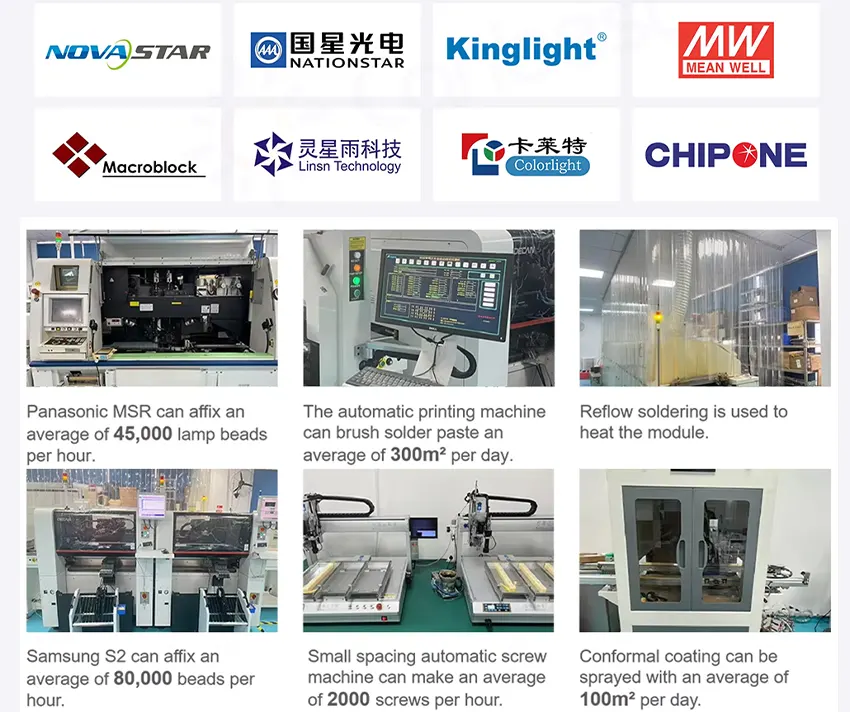

MIC Factory
We have a complete production line and can ensure on-time delivery.
Certificate
Applications
MC-COB Indoor Display is designed for various indoor applications, including conference rooms, control centers, retail stores, exhibitions, broadcasting studios, and commercial spaces. With high-definition image quality, stable performance, and seamless display effects, it provides an excellent visual experience for professional and creative environments.
Shopping Mall Fashion Advertising Display
Furniture Showroom Brand Display Screen
Corporate Lobby ESG Data Visualization Display
Luxury Mall Vertical Advertising Screen
Immersive Digital Art Exhibition Hall
Church Worship Stage Indoor COB LED Display
Metro Station Pillar Digital Advertising Display
Automotive Showroom Indoor COB Display
Luxury Jewelry Store Indoor COB Display
Complete Specifications
| Specification | 0.78 S | 0.93 S | 1.25 S | 1.56 S | 1.875 S |
| Pixel Pitch | 0.78 mm | 0.9375 mm | 1.25 mm | 1.56 mm | 1.875 mm |
| LED Technology | COB FlipChip | ||||
| Pixel Density | 1,638,400 pixels/m² | 1,137,777 pixels/m² | 640,000 pixels/m² | 409,600 pixels/m² | 284,444 pixels/m² |
| Module Size | 150 × 168.75 mm | ||||
| Module Resolution | 192 × 216 pixels | 160 × 180 pixels | 120 × 135 pixels | 96 × 108 pixels | 80 × 90 pixels |
| Cabinet Size | 600 × 337.5 mm | Same | Same | Same | Same |
| Cabinet Resolution | 768 × 432 pixels | 640 × 360 pixels | 640 × 360 pixels | 384 × 216 pixels | 240 × 180 pixels |
| Cabinet Material | Die-cast Aluminum | ||||
| Cabinet Weight | 4 kg | ||||
| Brightness | ≥600 nits | ||||
| Refresh Rate | 3840 Hz | ||||
| Contrast Ratio | 15,000:1 | ||||
| Viewing Angle | H 160° / V 140° (Optional) | ||||
| Gray Scale | 16 bits | ||||
| Power Consumption | Max. 560 / Avg. 180 W/m² | ||||
| Protection Rating | IP65 | ||||
Note: Specifications are subject to change without notice. Custom configurations available upon request. Contact our sales team for detailed technical documentation and CAD drawings.
Actual Cases
Metro Station Indoor COB Digital Advertising Display
Botanical Garden Indoor COB Exhibition Display
Smart City Integrated Operations Command Center
Frequently Asked Questions
Get answers to common questions about the MP-OI series outdoor LED display.
-
How to operate and use it?
-
It can by controlled by PC and Smartphone very easily. Welcome to inquiry for more information. We provide video guidance and remote assistance.
-
How many days for producing?
-
1-3 days for inventory products and 10-15 days for customized products.
-
What is the warranty?
-
5-8 years Warranty.
-
What is Price per square meter of screen?
-
Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
-
Can I customize it?
-
Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
-
What can you buy from us?
-
Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.
