0.97 / 1.25 / 1.56 / 1.95 / 2.5 / 2.6 / 2.97 / 3.91 mm
MC-PRO-Indoor Display
MC-PRO-Indoor Display features a slim design, high precision, and flexible installation options, delivering excellent visual performance for various indoor display applications.
Ultra High Definition
Light Weight
Flexible Assembly

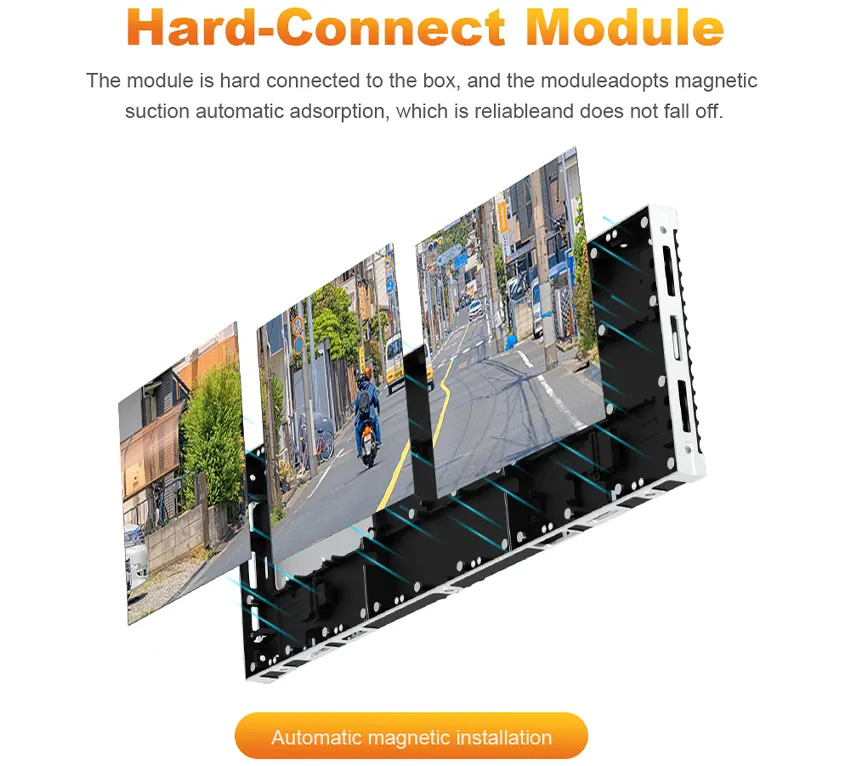

Hardwired
Pre Maintenance
Quick Installation
Get Free Quote
Product Details

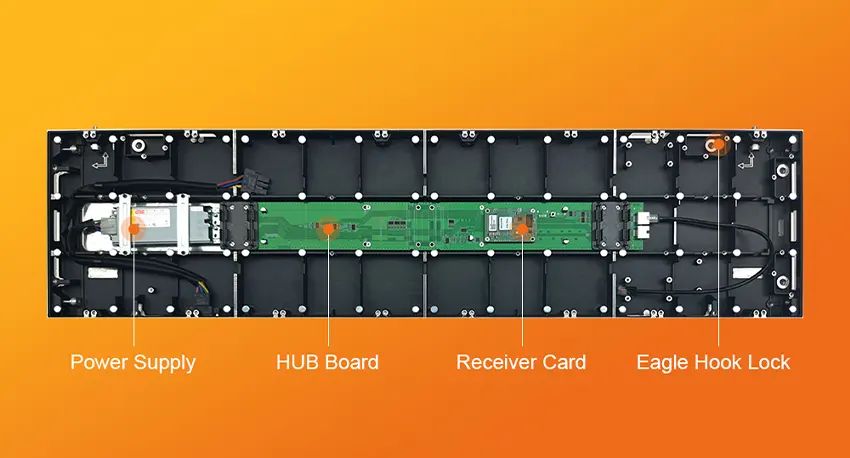

Box Frame Structure
The new display features an ultra-thin body and a minimalist internal wiring design.

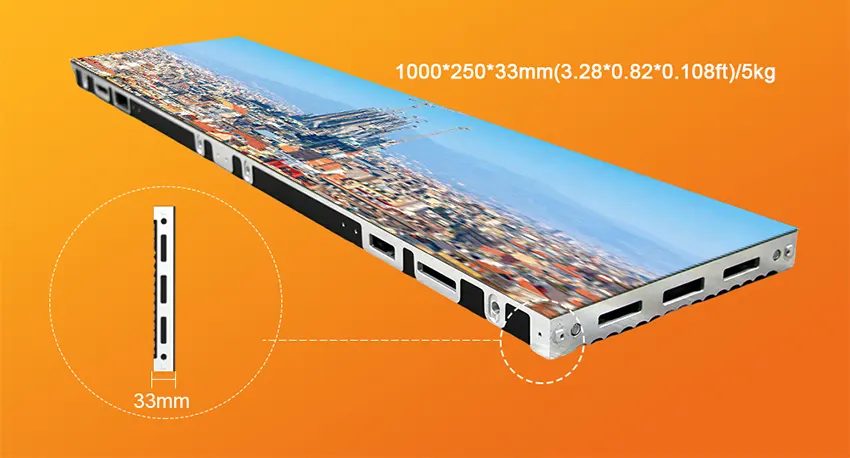

Portable Chassis
The die-cast aluminum chassis boasts high precision and is only 33mm thick. The weights of the four models are 9.8kg/5.0kg/4.0kg/3.0kg respectively

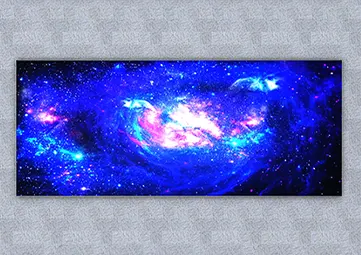

Excellent Display
High grayscale and high refresh rate, no scanning lines in photography, resulting in a more realistic and delicate display with vibrant and saturated colors.

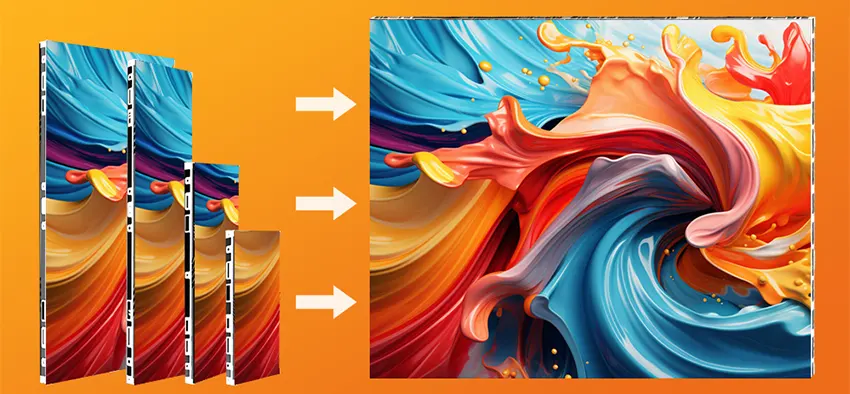

Free Splicing
The four types of enclosures, 1000×500mm, 1000×250mm, 750×250mm, and 500×250mm, can be flexibly spliced horizontally and vertically, providing unlimited possibilities for your creative ideas and applications in any scene.

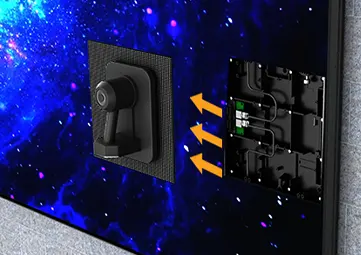

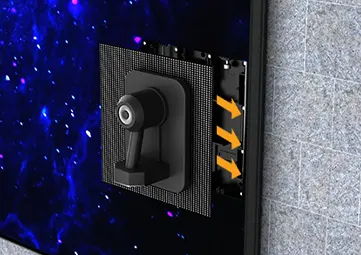

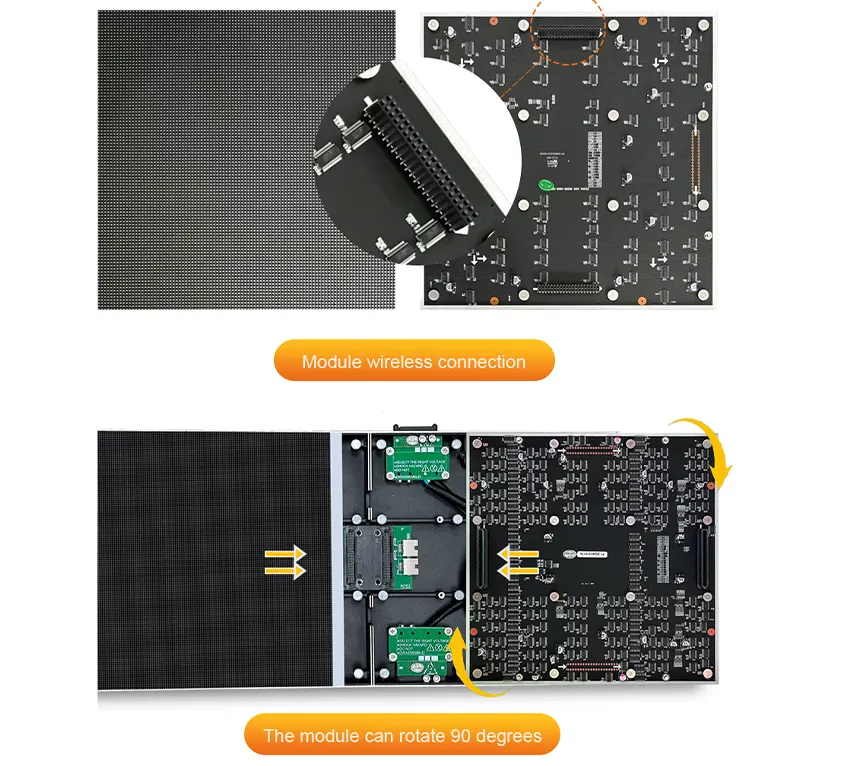

Front Maintenance
Front Maintenance Allowing Quick And Easy Maintenance Of Modules, Power Supplies, And Internal Components Without Needing Rear Access – Ideal For Space-Constrained Installations.
1. Use a tool to hold the module
2. Pull the module out of the display
3. Replaced module
4. The display has returned to normal.

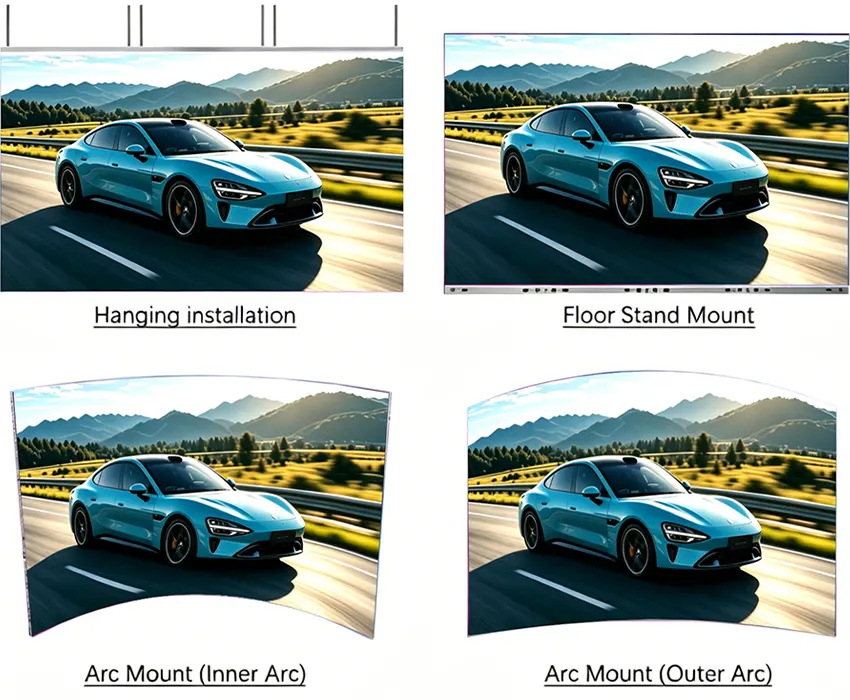

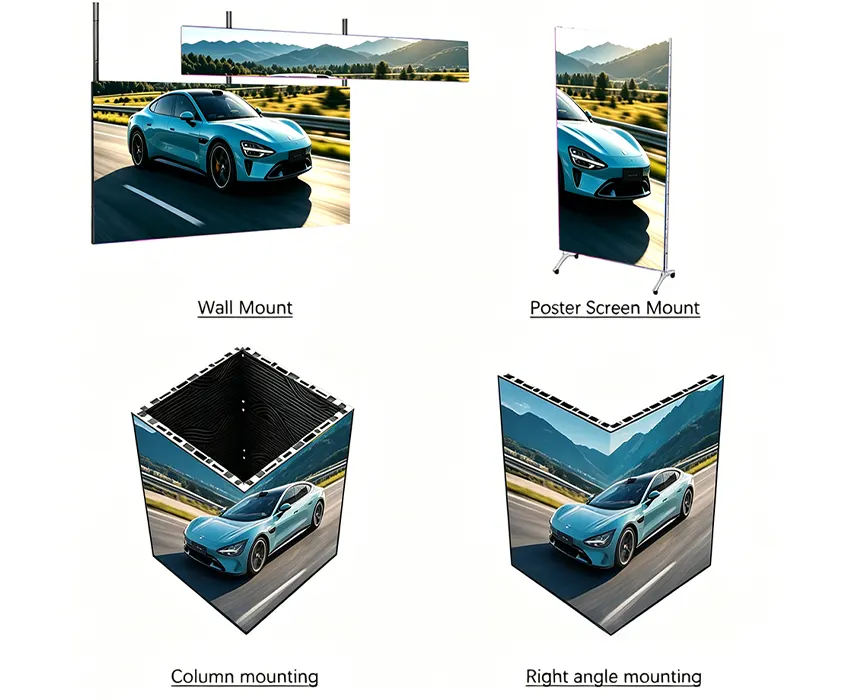

Creative Splicing
It Supports Right-Angle, Column, Arc And Other Shapes To Meet Various Splicing Needs.

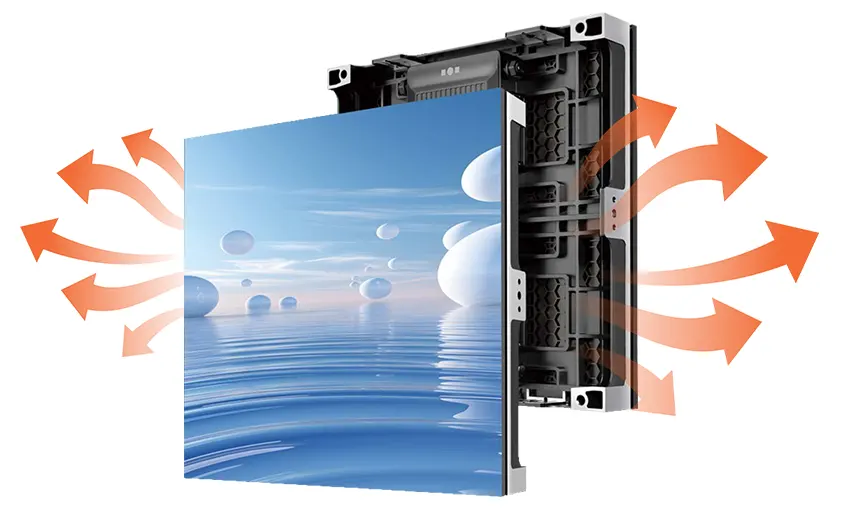

Silent Heat Dissipation
Special heat dissipation device design, low noise, fast heat dissipation, guaranteeing the tiles work stable.

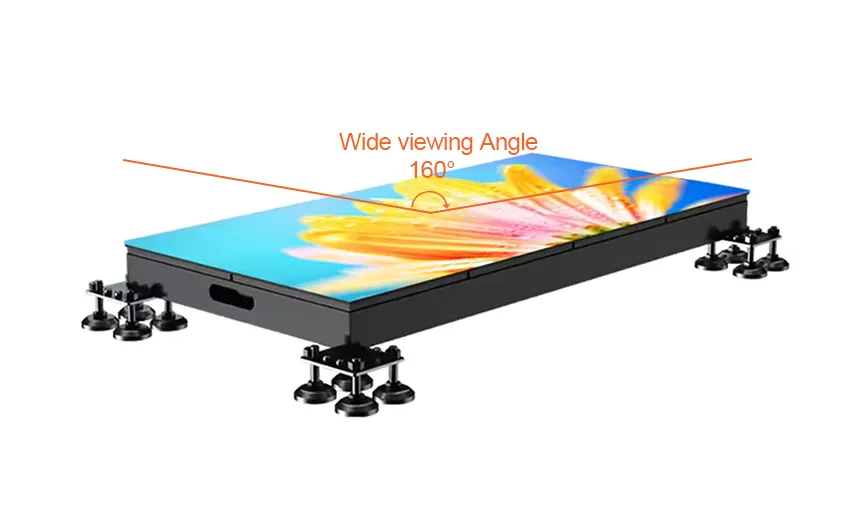

Ultra Wide View Vision
High color gamut wide viewing Angle display, the picture effect is more hierarchical. 160° wide viewing Angle design, extend the visual experience, without fear of distortion.
Waterproof
Waterproofing can be customized for various applications.
Applications
Suitable for various indoor applications, including commercial displays, conference rooms, exhibitions, control centers, and creative visual solutions.
Corporate Training Room Presentation Display
Sports Brand Flagship Store Display
Metro Station Public Advertising Display
Airport Terminal Information Display
Retail Store Advertising Display
Conference Forum Presentation Display
Corporate Meeting Room Presentation
Industrial Exhibition Hall Display
Shopping Mall Atrium Advertising Display
Luxury Cosmetics Store Advertising Display
Complete Specifications
| Pixel Pitch | P0.97 | P1.25 | P1.56 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
| LED Type | MIP0606 | SMD1010(GOB) | SMD1212(GOB) | SMD1515(GOB) | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Physical density(Dot/sqm) | 640000 | 640000 | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module resolution | 256X256 | 200X200 | 160X160 | 128X128 | 100X100 | 96X96 | 84X84 | 64X64 |
| Module dimension(mm) | 250X250 | |||||||
| Panel size(mm) | 1000×500×33 1000×250×33 750×250×33 500×250×33 |
|||||||
| Module quantity(WXH) | 4X2/4X1/3X1/2X1 | |||||||
| Panel resolution | 800×400 800×200 600×200 400×200 |
800×400 800×200 600×200 400×200 |
640×320 640×160 480×160 320×160 |
512×256 512×128 384×128 256×128 |
400×200 400×100 300×100 200×100 |
384×192 384×96 288×96 192×96 |
336×168 336×84 252×84 168×84 |
256×128 256×64 192×64 128×64 |
| Maintenance | Front access | |||||||
| Cabinet material | Die cast aluminum | |||||||
| Single point brightness correction | Have | |||||||
| Brightness(Nits) | 600 | 600 | 600 | 800 | 800 | 800 | 800 | 800 |
| Color temperature(K) | 5000-12000 Optional | |||||||
| Viewing angle(V/H) | 160°/160° | |||||||
| Brightness/Color uniformity | ≥97% | |||||||
| Contrast | 10000 : 1 | |||||||
| Frame frequency | 50/60 | |||||||
| Drive mode | 1/50 Scan | 1/50 Scan | 1/40 Scan | 1/32 Scan | 1/25 Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan |
| Gray level | 14/16 Optional | |||||||
| Refresh rate(Hz) | 3840 | |||||||
| Max. power consumption(W/sqm) | 350 | |||||||
| Avg. power consumption(W/sqm) | 100-200 | |||||||
| Protection level | IP31 | |||||||
| Power input | AC90-264V, 47-63Hz | |||||||
| Working temperature/humidity(℃/RH) | -20~60℃ / 10%~85% | |||||||
| Storage temperature/humidity(℃/RH) | -20~60℃ / 10%~85% | |||||||
| Cert. | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||||||
Note: Specifications are subject to change without notice. Custom configurations available upon request. Contact our sales team for detailed technical documentation and CAD drawings.
Frequently Asked Questions
Get answers to common questions about the MP-OI series outdoor LED display.
-
How to operate and use it?
-
It can by controlled by PC and Smartphone very easily. Welcome to inquiry for more information. We provide video guidance and remote assistance.
-
How many days for producing?
-
1-3 days for inventory products and 10-15 days for customized products.
-
What is the warranty?
-
5-8 years Warranty.
-
What is Price per square meter of screen?
-
Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
-
Can I customize it?
-
Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
-
What can you buy from us?
-
Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.
