P1.953 MAX / P2.604 MAX / P2.976 MAX / P3.91 MAX
Completely Upgraded
Ultra Curve Rental
Energy Saving
3840Hz
High Grayscale
High Protection
High-Quality LED
Get Free Quote
Rental Flexible Screen
We offer OEM & ODM services for your business.

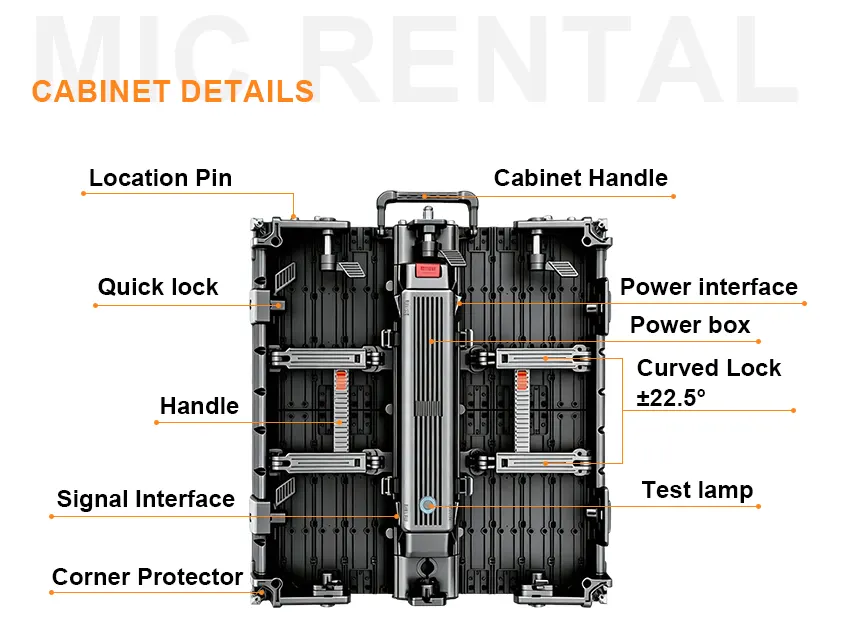

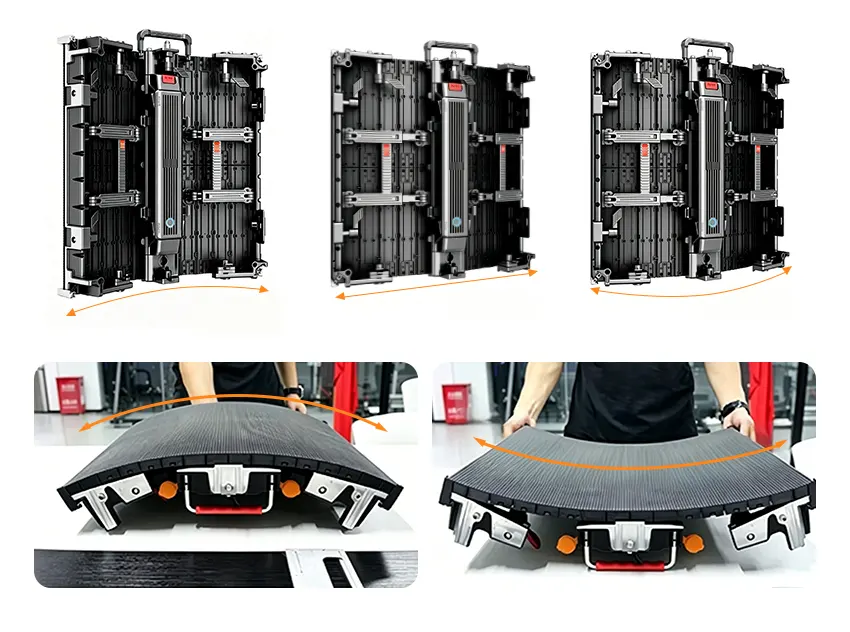

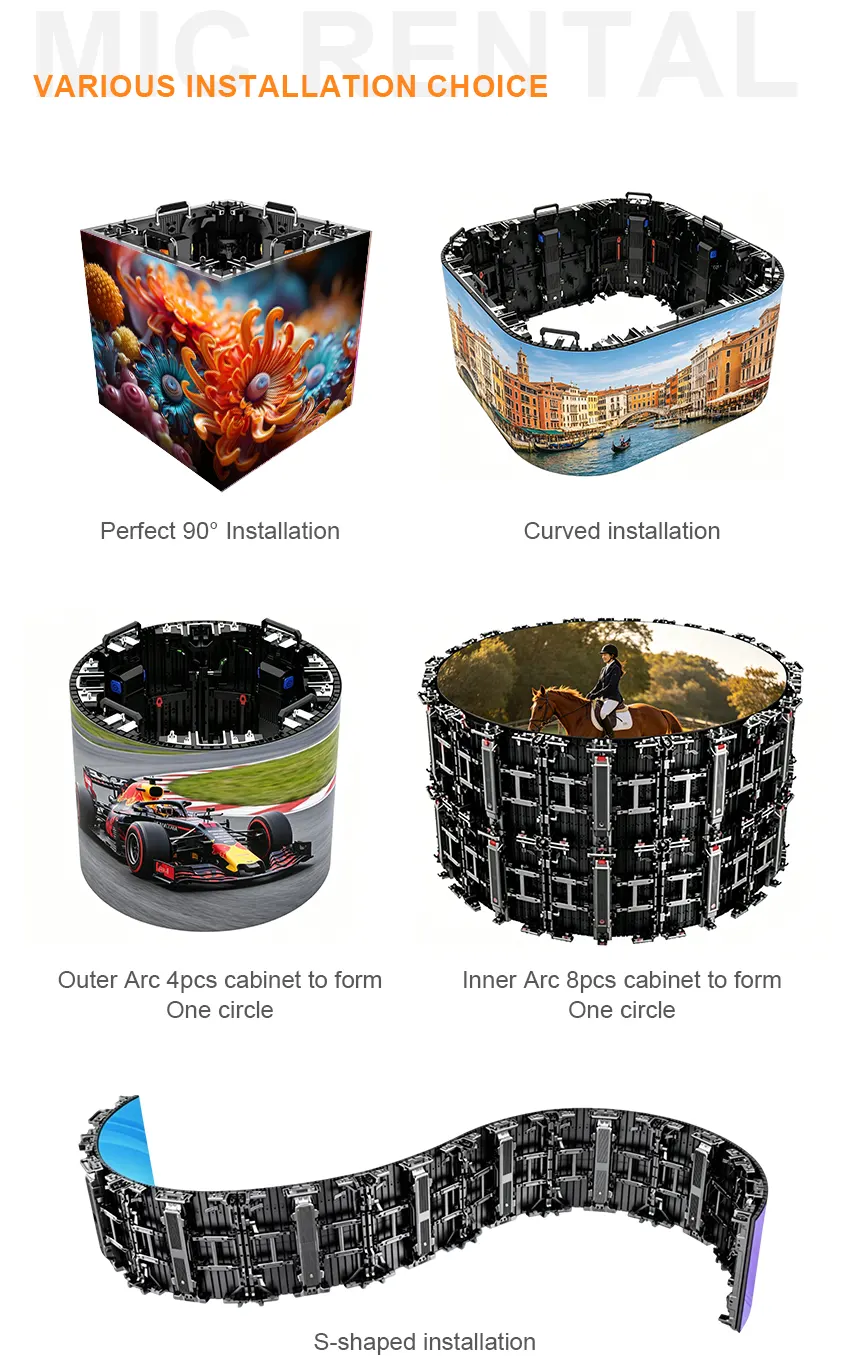

Ultra-Flexible Cabinet
The single-sided arc-shaped lock of a single cabinet can be adjusted to 22.5°, the cabinet can be adjusted to an inner and outer S-shaped arc.

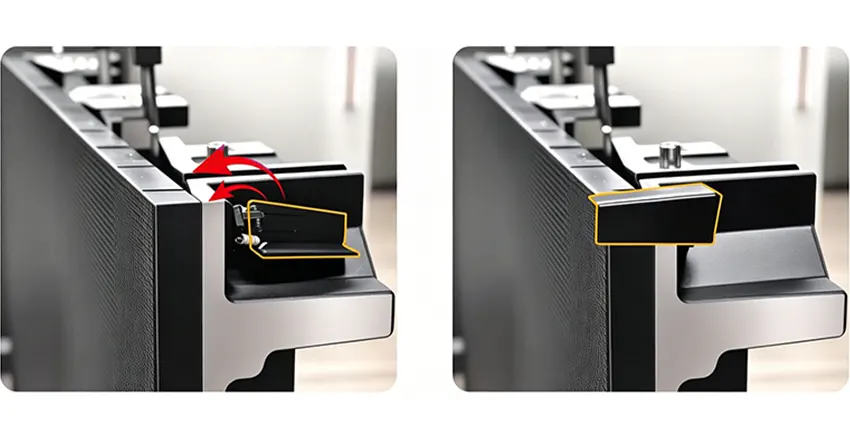

Edge Protection Design
Our shock-resistant design focuses on the vulnerable edges, ensuring they remain intact and undamaged throughout transportation and installation.

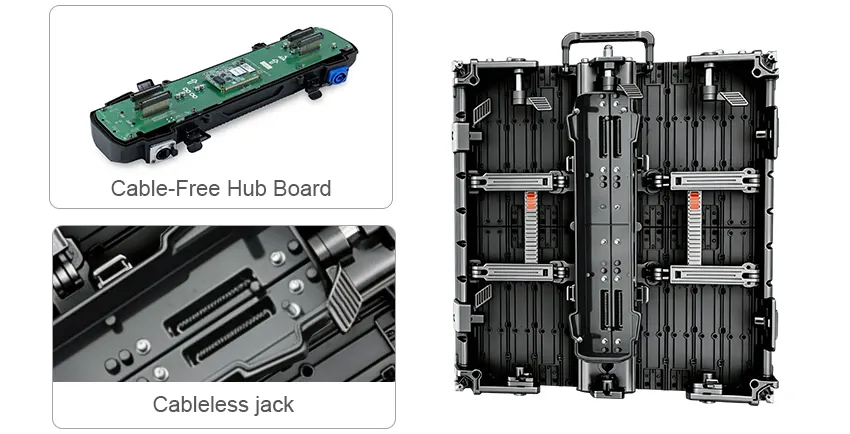

Hub Board Connection Design
Hard Connection Design with detachable Power box and HUB board

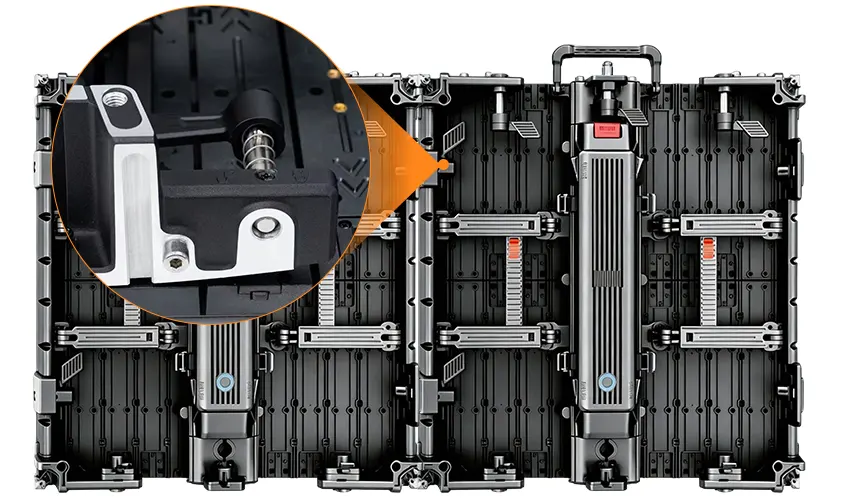

Quick Install
There are two quick locks on the left and top of the rental LED screen to ensure faster assembly and better screen flatness.

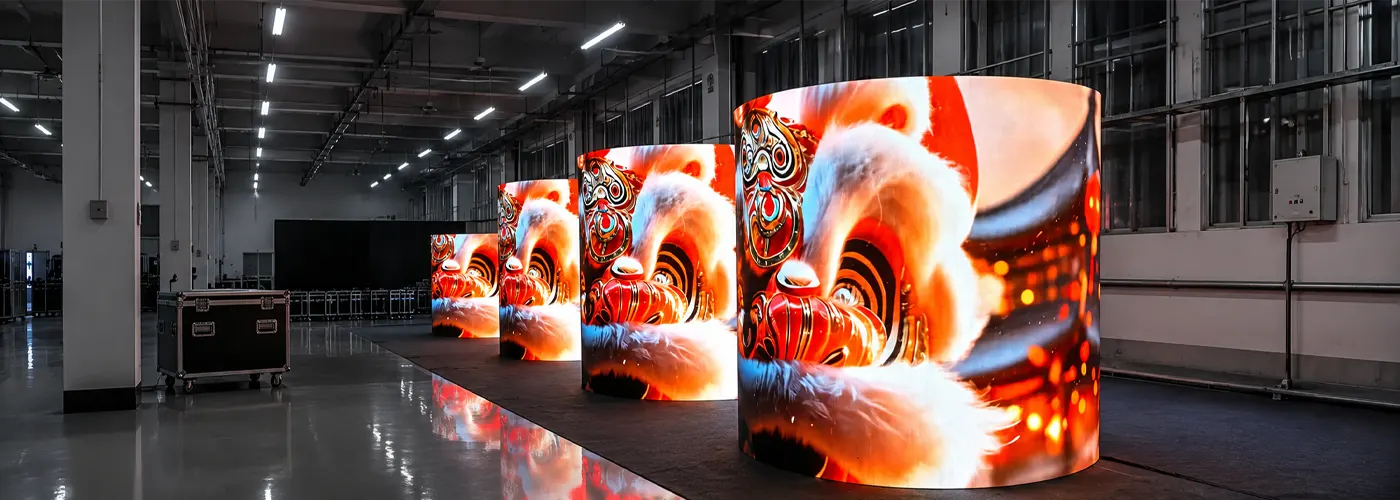

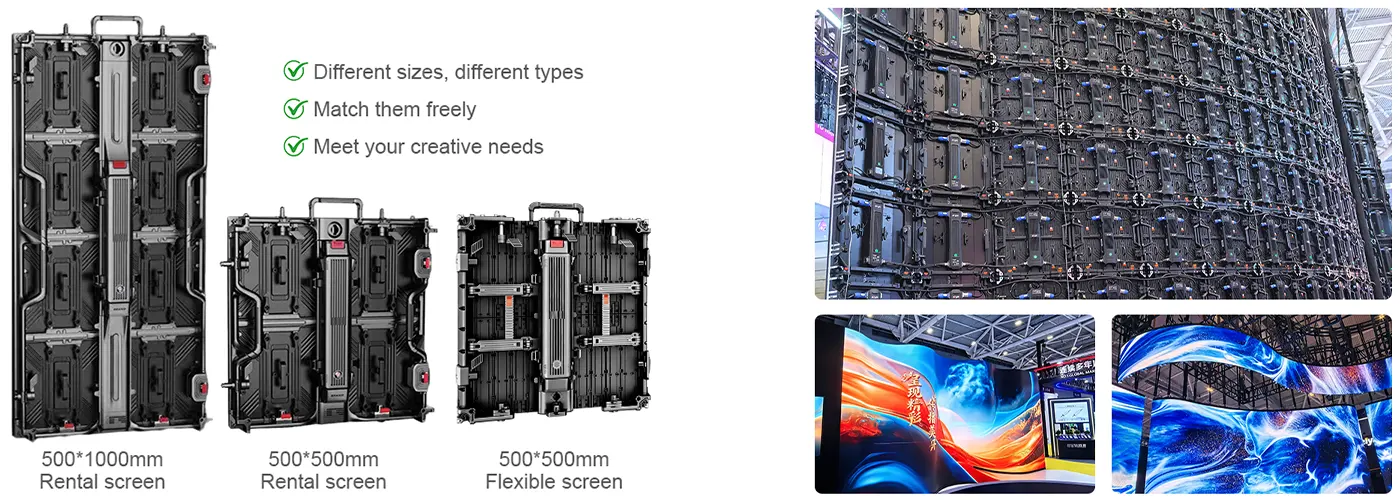

Strong Compatibility
Supports interconnection of multiple types of racks, enabling seamless and creative splicing.
Perfect and Stunning Visuals with 7680Hz
With a brightness up to 5000 nits, 14-16 bit grayscale, up to 3840-7680 Hz refresh rate, Series offer outstanding visuals in display quality, captivating audiences with its working performance.
IP65 Protection Level
- Indoor IP30, dustproof and waterproof.
- Outdoor IP65, withstands harsh weather conditions during activities.
Applications
MCR-MAX-Indoor Display is widely used in indoor events, exhibitions, conferences, shopping malls, studios, stage performances, and commercial displays. With a lightweight design, flexible installation, high-definition visual performance, and reliable operation, it creates immersive and impactful display experiences for various indoor applications.
Indoor Church Stage Display
Indoor Conference Stage Display
Indoor Corporate Event Stage Display
Indoor Immersive Stage Display
Indoor Banquet Hall Immersive Stage Display
Indoor Conference Hall Stage Display
Wedding Banquet Hall
Concert Stage
Technology Exhibitions
Auto Exhibition
Exhibition Display
Fashion Show Stage
Exhibition Display
Commercial Exhibition Space
Digital Exhibition Hall
Complete Specifications
| Item | MCR-P1.953 MAX | MCR-P2.604 MAX | MCR-P2.976 MAX | MCR-P3.91 MAX |
| Pixel Pitch | 1.953 mm | 2.604 mm | 2.976 mm | 3.91 mm |
| LED Encapsulation Mode | SMD1515 | SMD1515 | SMD2020 | SMD2121 |
| Pixel Density | 262,177 pixels/sqm | 147,456 pixels/sqm | 112,896 pixels/sqm | 147,456 pixels/sqm |
| Module Dimension | 250 × 250 mm | |||
| Module Resolution | 128 × 128 pixels | 96 × 96 pixels | 84 × 84 pixels | 64 × 64 pixels |
| Cabinet Dimension | 500 × 500 mm / 500 × 1000 mm | |||
| Cabinet Resolution | 256 × 256 / 256 × 512 pixels | 192 × 192 / 192 × 384 pixels | 168 × 168 / 168 × 336 pixels | 128 × 128 / 128 × 256 pixels |
| Cabinet Material | Die-cast aluminum | |||
| Cabinet Weight | 7.2 kg / 12 kg | |||
| Driver IC | High-refresh-rate PWM chip | |||
| Refresh Rate | 3840 Hz | |||
| Color Temperature | Adjustable from 3000K–9800K | |||
| Contrast Ratio | 5000:1 | |||
| Brightness | ≥600 nits | |||
| Luminance Uniformity | 97% | |||
| Color Gamut | 95%–99% DCI-P3 | |||
| Color Uniformity | ±0.003 Cx, Cy | |||
| Viewing Angle | Horizontal 160° / Vertical 140° (Optional) | |||
| Grey Scale | 16 bits | 32 bits | 16 bits | 16 bits |
| Receiving Card | Nova | |||
| Driving Method | 1/32 scan | 1/64 scan | 1/28 scan | 1/16 scan |
| Power Consumption | Max: 560 W/sqm; Average: 180 W/sqm | |||
| LED Lifetime | Up to 100,000 hours | |||
| Operating Voltage | AC100–240V, 50/60Hz | |||
| Working Temperature | -20℃ to 70℃ | |||
| Working Humidity | 10%–90% RH | |||
| Waterproof | IP40 | |||
| Support Mode | RF / S-Video / RGB / RGBHV / YUV / YC | |||
| Net Weight | 58 kg (8 in 1) / 72 kg (6 in 1) | |||
| Gross Weight | 94 kg (8 in 1) / 112 kg (6 in 1) | |||
| Case Size | 88 × 58 × 74 cm / 107 × 70 × 74 cm | |||
| Total Capacity | 0.38 cbm / 0.56 cbm | |||
Note: Specifications are subject to change without notice. Custom configurations available upon request. Contact our sales team for detailed technical documentation and CAD drawings.
Frequently Asked Questions
Get answers to common questions about the MP-OI series outdoor LED display.
-
How to operate and use it?
-
It can by controlled by PC and Smartphone very easily. Welcome to inquiry for more information. We provide video guidance and remote assistance.
-
How many days for producing?
-
1-3 days for inventory products and 10-15 days for customized products.
-
What is the warranty?
-
5-8 years Warranty.
-
What is Price per square meter of screen?
-
Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
-
Can I customize it?
-
Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
-
What can you buy from us?
-
Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.
