P3.9-7.8 / P10.4 / P15.625 / P31.125
Completely Upgraded
Ultra Thin
All-Aluminum Structure
High Transparency

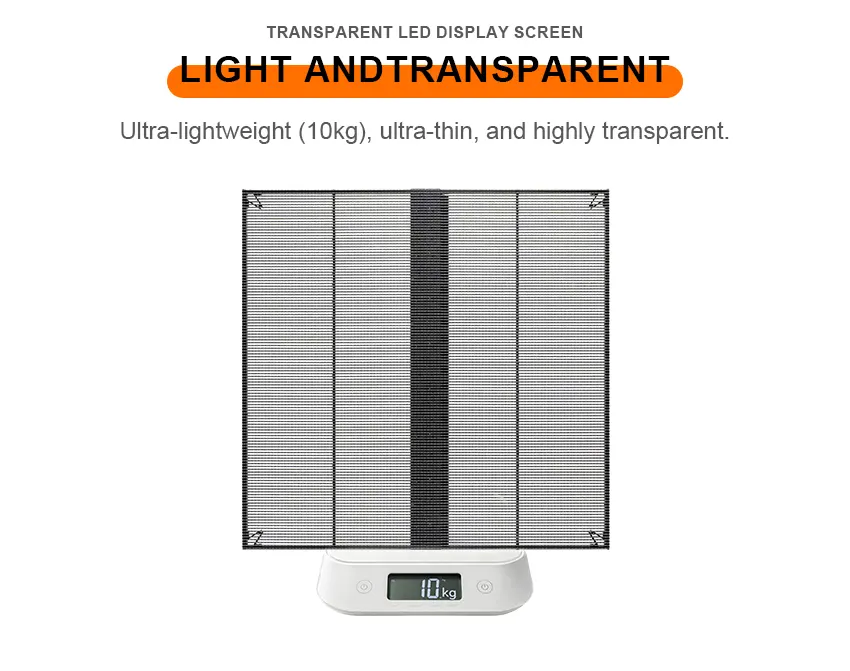

Lightweight Design
IP65 Weatherproof
High Refresh Rate
Get Free Quote

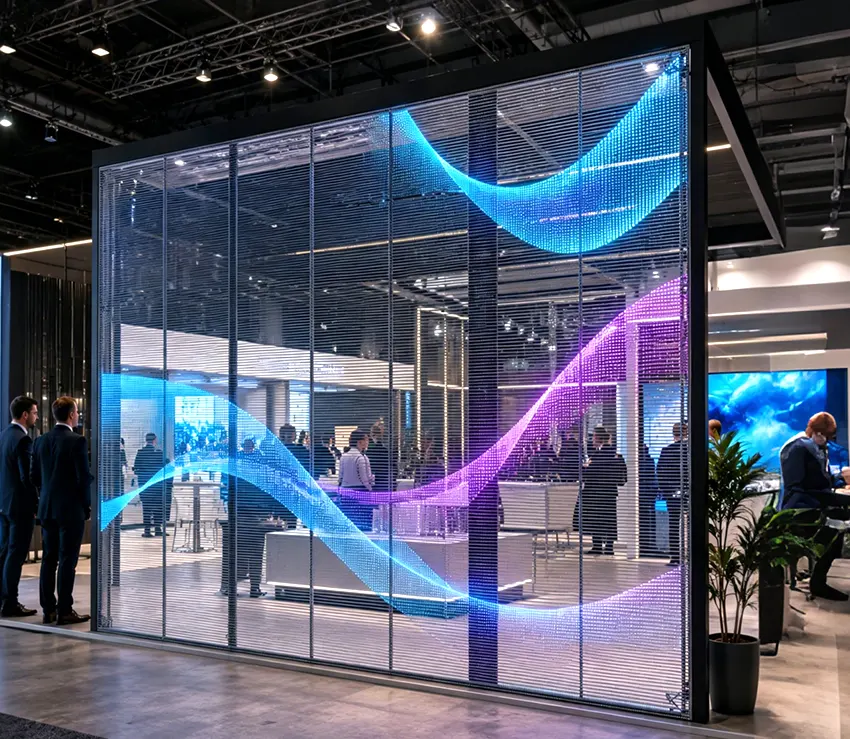

High Transparency for Glass Façades
The MC-T Outdoor Transparent LED Display combines high outdoor brightness with an open transparent structure, making it suitable for glass curtain walls, commercial façades and architectural display installations.
Depending on pixel pitch, transmittance ranges from ≥58% to ≥70%, allowing digital advertising content to remain highly visible while reducing obstruction of the building behind the display.
Transparent LED Display Screen

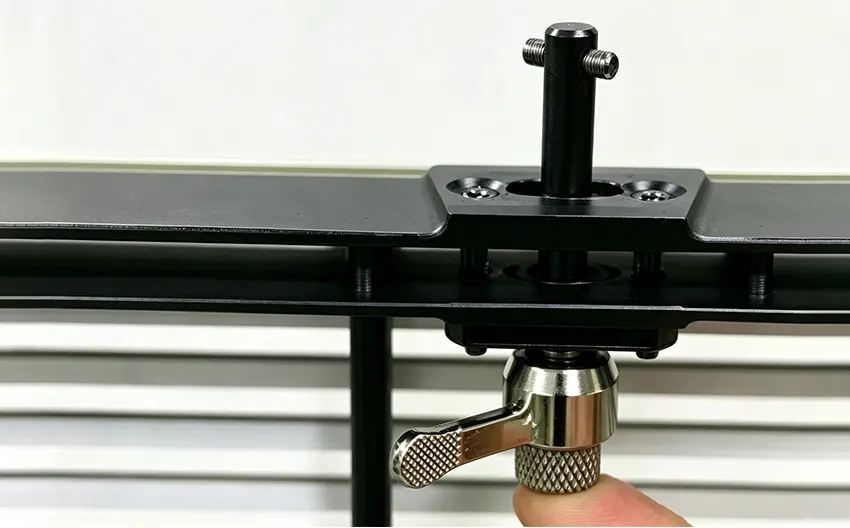

Quick Install
There are two quick locks on the left and top of the transparent LED Display.
Transparent LED Display Screen

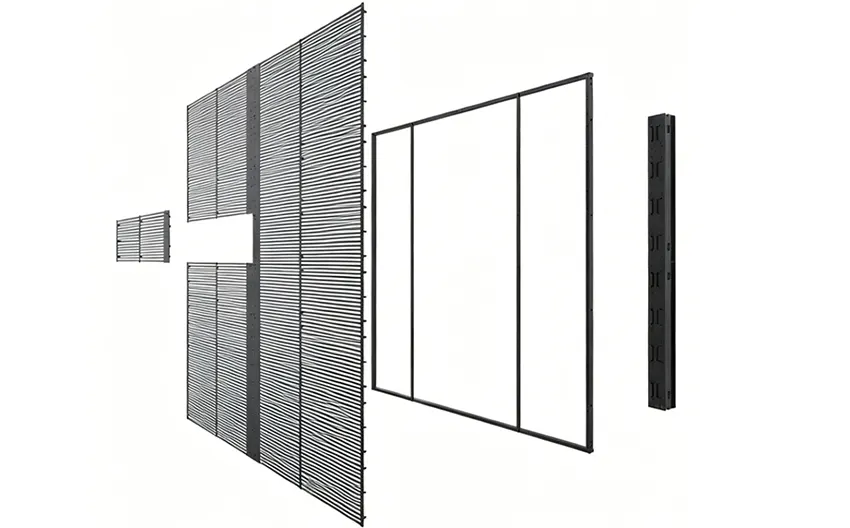

Convenient Maintenance
Simple operation, modules can be replaced individually, saving maintenance costs.
Transparent LED Display Screen
Wide Viewing Experience
A high-refresh-rate PWM driver IC supports a 3840Hz refresh rate across the series, enabling smooth motion reproduction, reduced visible flicker, better performance during video recording, stable dynamic advertising playback, and improved visual consistency for large LED installations. Together with 16-bit grayscale, the screen provides smoother brightness transitions and more detailed image reproduction.
Applications
The combination of high transparency, outdoor brightness and IP65 protection makes the MC-T series suitable for large transparent media installations.
Shopping Mall Exterior Glass Façade
Commercial Building Curtain Wall
Retail Store Exterior Advertising
Hotel Exterior Glass Architecture
Automotive Showroom Glass Façade
Outdoor Exhibition & Event Display
Transportation Hub Glass Architecture
Landmark & Architectural Media Façade
Complete Specifications
| Specification | P3.9-7.8 | P10.4 | P15.625 | P31.125 |
| Pixel Pitch | 3.9-7.8 mm | 10.4 mm | 15.625 mm | 31.125 mm |
| LED Encapsulation | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 32,768 pixels/m² | 9,245 pixels/m² | 4,096 pixels/m² | 1,024 pixels/m² |
| Module Resolution | 128 × 16 pixels | 48 × 12 pixels | 32 × 8 pixels | 16 × 4 pixels |
| Cabinet Resolution | 256×128 / 256×64 | 96×96 / 96×48 | 64×64 / 64×32 | 32×32 / 32×16 |
| Driving Method | 1/8 Scan | 1/2 Scan | 1 Scan | 1 Scan |
| Transmittance | ≥58% | ≥65% | ≥65% | ≥70% |
| Module Dimension | 500 × 125 mm | |||
| Cabinet Dimension | 1000×1000×80 / 1000×500×80 mm | |||
| Cabinet Material | Aluminum Profile | |||
| Cabinet Weight | 14 kg / 7.5 kg | |||
| Driver IC | High-Refresh-Rate PWM Chip | |||
| Refresh Rate | 3840 Hz | |||
| Brightness | ≥4500 nits | |||
| Contrast Ratio | 5000:1 | |||
| Color Temperature | 3000K–9800K Adjustable | |||
| Color Gamut | 95%–99% DCI-P3 | |||
| Color Uniformity | ±0.003 Cx, Cy | |||
| Viewing Angle | H 140° / V 140° Optional | |||
| Gray Scale | 16 bit | |||
| Receiving Card | Nova | |||
| Power Consumption | Max. 800 / Avg. 260 W/m² | |||
| LED Lifetime | Up to 100,000 Hours | |||
| Operating Voltage | AC100–240V, 50/60Hz | |||
| Working Temperature | -10°C to 40°C | |||
| Working Humidity | 10%–90% RH | |||
| Protection Rating | IP65 | |||
Note: Specifications are subject to change without notice. Custom configurations available upon request. Contact our sales team for detailed technical documentation and CAD drawings.
Frequently Asked Questions
Get answers to common questions about the MC-T series outdoor LED display.
-
Is the MC-T transparent LED display suitable for outdoor use?
-
Yes. The outdoor series is designed with IP65 protection, ≥4500-nit brightness and an aluminum profile cabinet for outdoor transparent LED display applications.
-
Which pixel pitches are available?
-
The outdoor series includes P3.9-7.8, P10.4, P15.625 and P31.125 configurations.
-
What is the transparency of the outdoor LED screen?
-
Transparency depends on pixel pitch and ranges from ≥58% to ≥70%. Larger pixel pitches generally provide higher transmittance.
-
What is the brightness of the display?
-
The specified brightness is ≥4500 nits, designed for high-visibility outdoor applications.
-
What is the refresh rate?
-
All four configurations support a 3840Hz refresh rate using a high-refresh-rate PWM driver IC.
-
What cabinet sizes are available?
-
Standard cabinet dimensions are 1000 × 1000 × 80 mm and 1000 × 500 × 80 mm.
-
How heavy is each cabinet?
-
The 1000 × 1000 mm cabinet weighs approximately 14 kg, while the 1000 × 500 mm cabinet weighs approximately 7.5 kg.
-
What is the viewing angle?
-
An optional 140° horizontal / 140° vertical viewing angle is available according to the product specification.
-
What power supply does the display require?
-
The system supports AC100–240V, 50/60Hz, allowing it to accommodate different project power environments.
-
Can the display configuration be customized?
-
Project configurations can be discussed according to screen dimensions, installation environment, pixel pitch, transparency requirements and application requirements. Contact our team with your project information for configuration support.
