P2.604 PRO / P2.976 PRO / P3.91 PRO / P4.81 PRO
Completely Upgraded
Ultra Curve Rental
Energy Saving
3840Hz
High Grayscale
High Protection
High-Quality LED
Get Free Quote

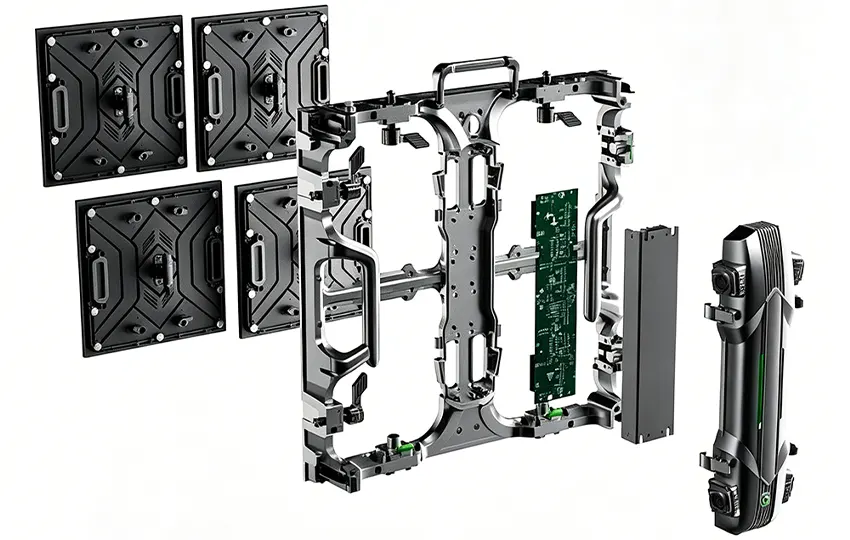

Cabinet Details
Designed specifically for LED display rental, it features hard connections eliminating complex wiring and enabling ultra-fast installation.

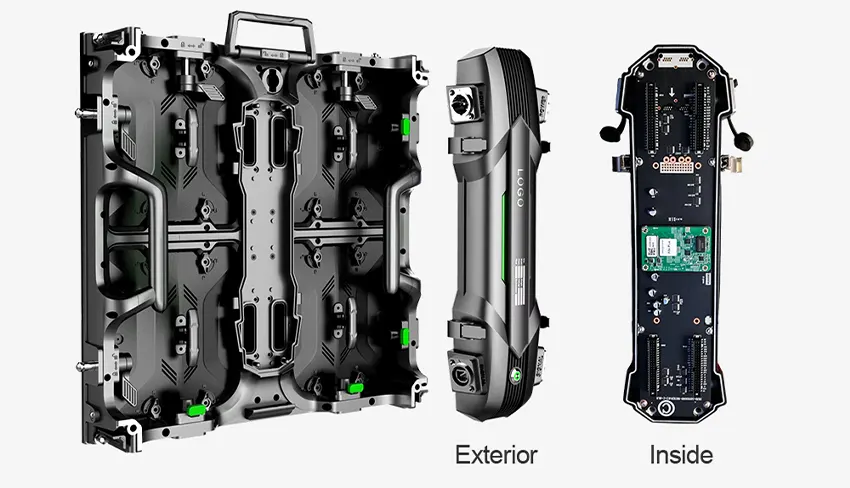

Power Box Details
Detachable power supply box, hard-connect design, quick assembly and maintenance.

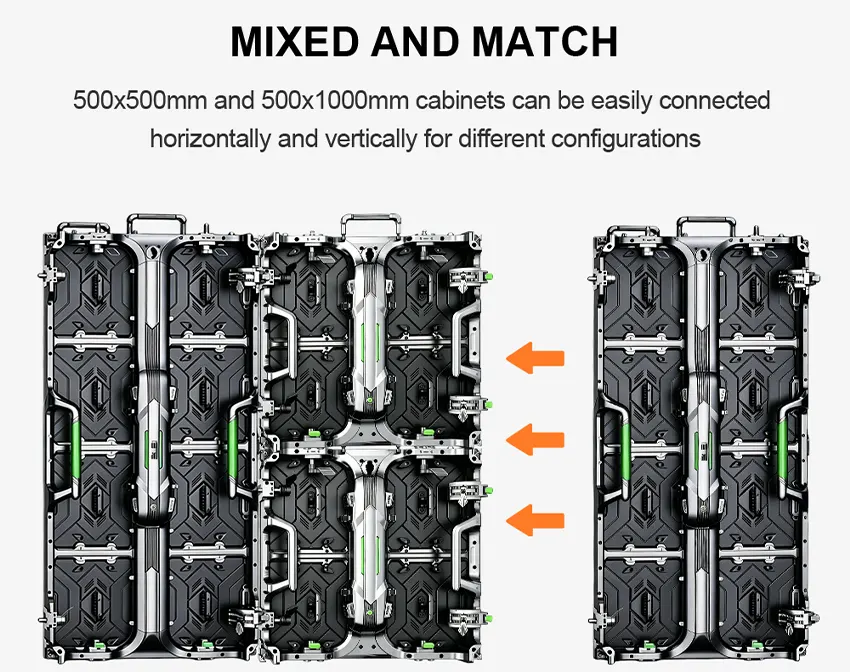

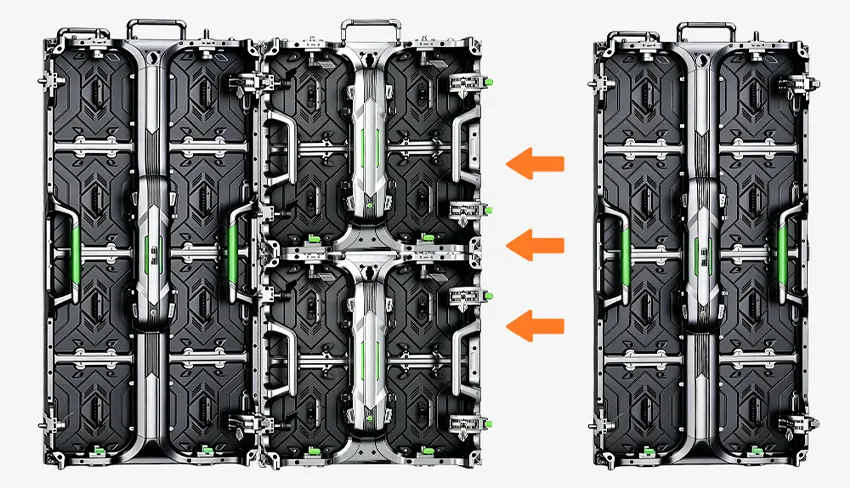

Mixed and Match
500x500mm and 500x1000mm cabinets can be easily connected horizontally and vertically for different configurations.

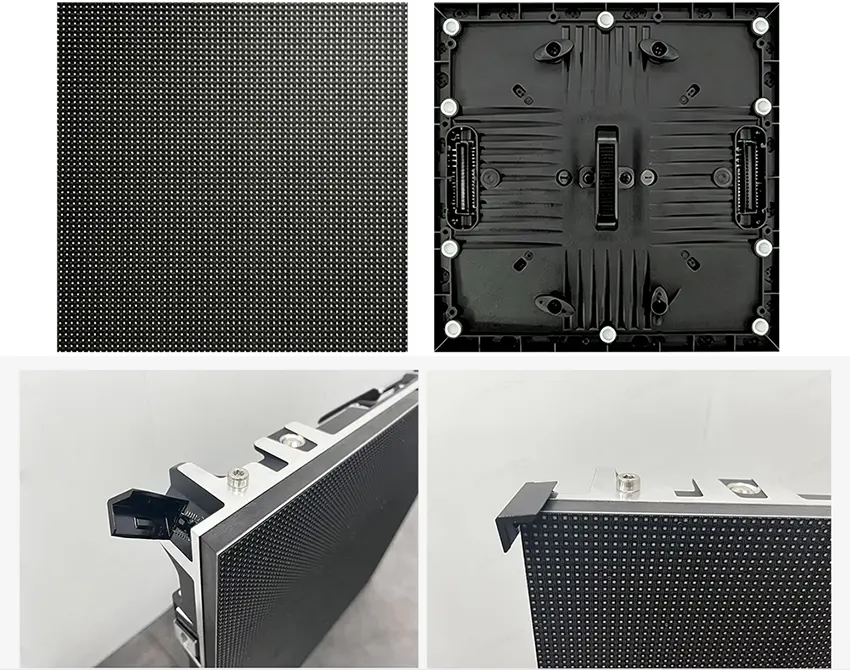

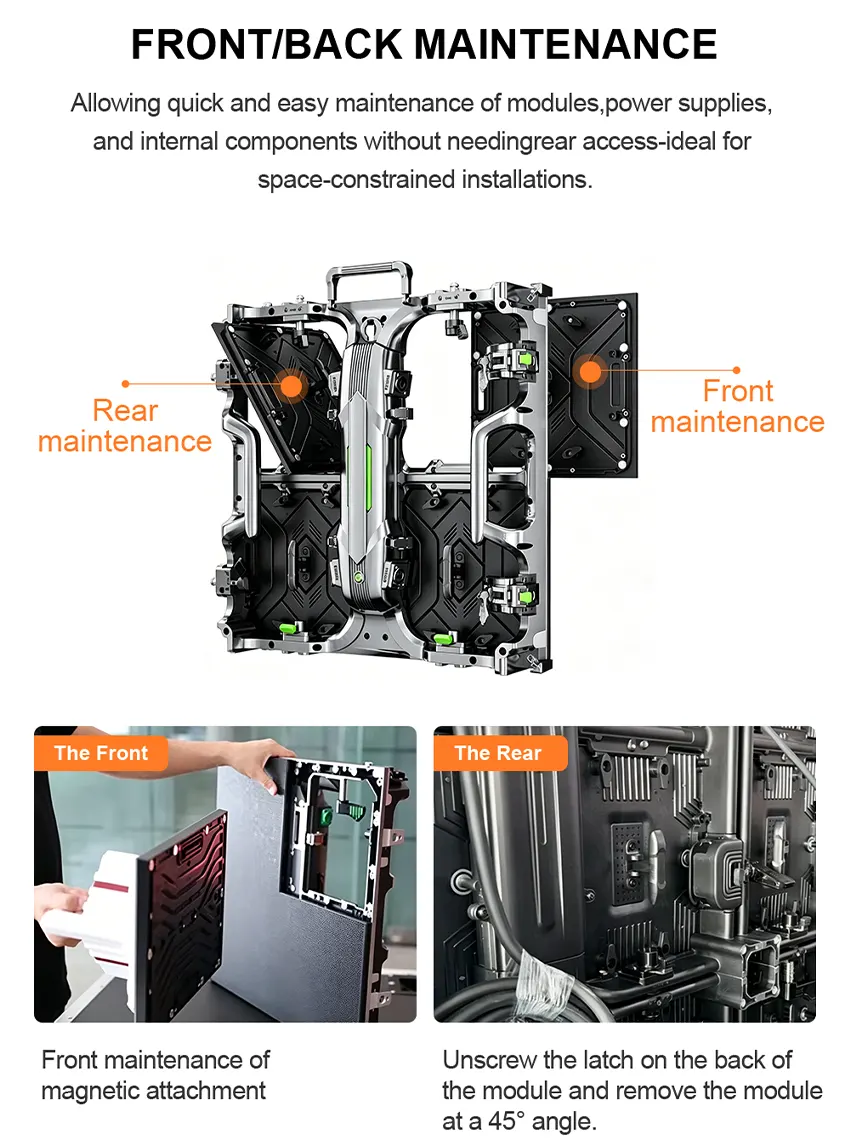

Hard-Connect Module
Magnetic design for quick installation and easy front and rear maintenance.

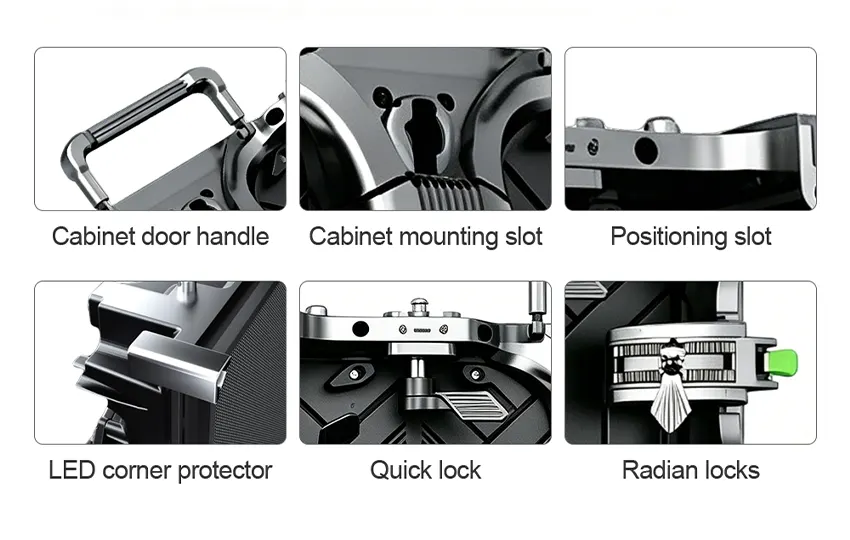

Edge Protection
At the corners of each panel, edge protection devices are installed which helps to minimize the damage to pixels during manual operation and transportation.

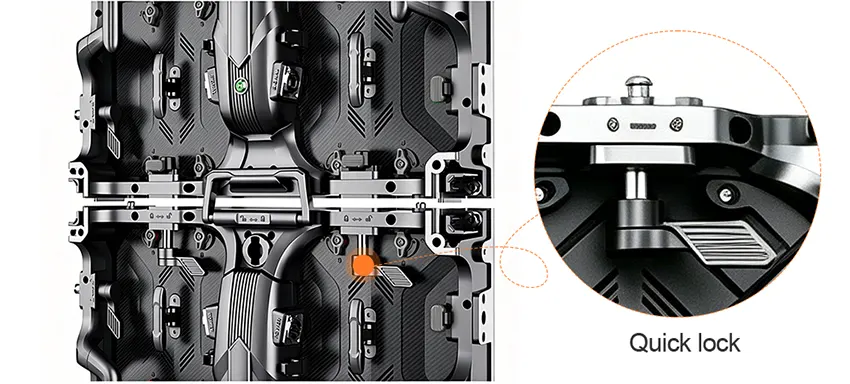

Edge Fast Locking System, Quickassembly and Disassembly
The series features a fast locking system with an instant feedback mechanism and magnets on the top and bottom of the modulars, allowing the operator to set up quickly.

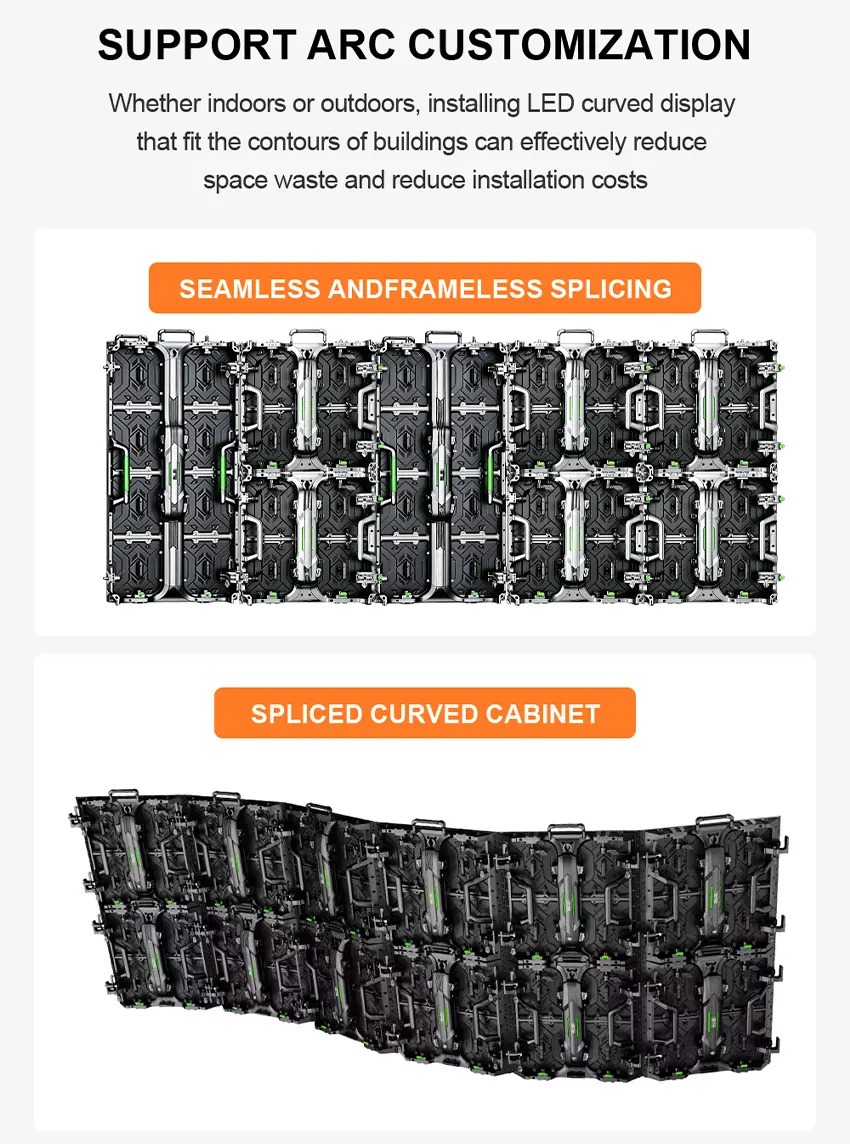

Ultra-Flexible Cabinet
The single-sided arc-shaped lock of a single cabinet can be adjusted to 22.5°, the cabinet can be adjusted to an inner and outer S-shaped arc.
Strong Compatibility
Supports interconnection of multiple types of racks, enabling seamless and creative splicing.
High-Quality LED Beads

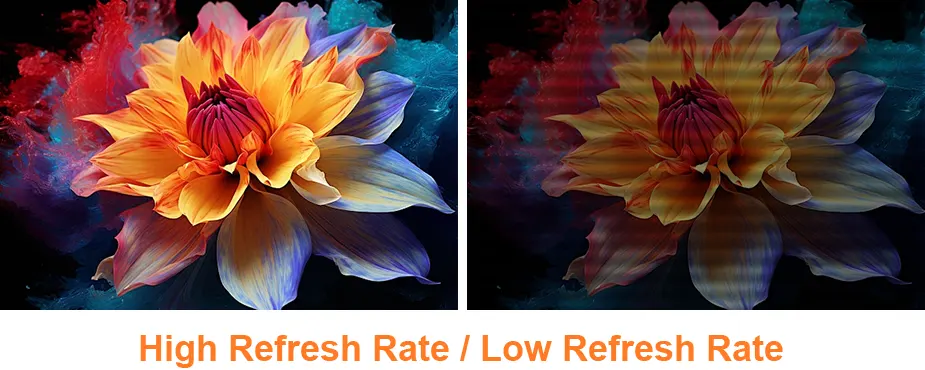

With a brightness up to 5000 nits, 14-16 bit grayscale, up to 3840-7680 Hz refresh rate, Series offer outstanding visuals in display quality, captivating audiences with its working performance.

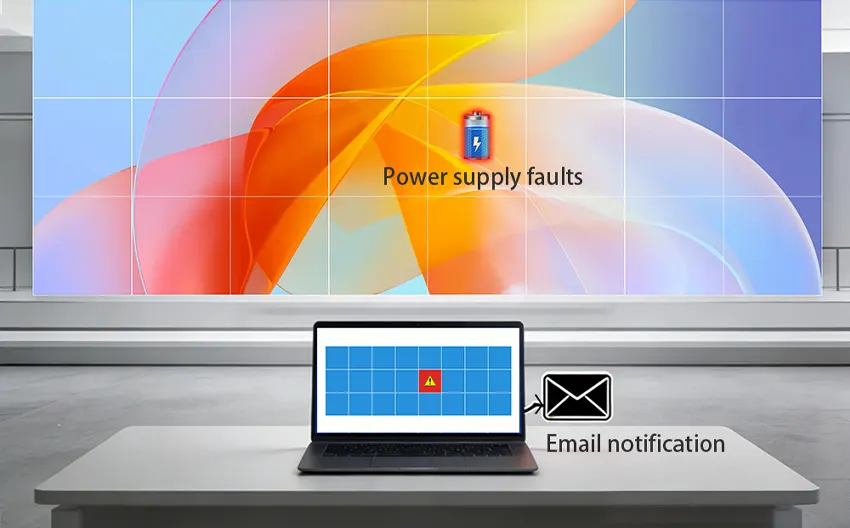

Power Monitoring Systemlow Operation Cost
Our PMS system can monitor the working status of all power supplies in real time. When any failure is detected, the system will automatically locate the faulty and notify the operator through email, so that they can get replaced easily, improving troubleshooting efficiency, saving operation costs.

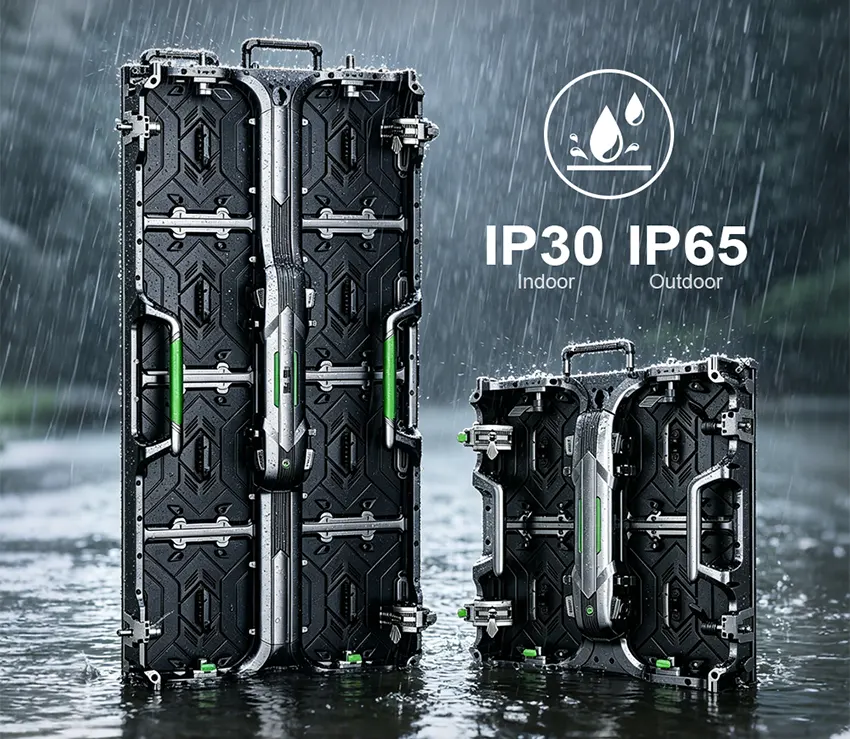

Protection Grade
- Indoor IP30, dustproof and waterproof.
- Outdoor IP65, withstands harsh weather conditions during activities.
Applications
MCR-PRO-Outdoor Display is widely used in outdoor events, concerts, stage performances, sports competitions, festivals, exhibitions, and commercial advertising applications.
Outdoor Festival & Cultural Event Display
Outdoor Cultural Festival & Celebration Display
Outdoor Sports Event & Live Broadcast Display
Outdoor Concert & Live Performance Display
Outdoor Music Festival & Night Concert Display
Outdoor Brand Promotion & Commercial Event Display
Beach Wedding & Outdoor Wedding Event Display
Complete Specifications
| Item | MCR-P2.604 PRO | MCR-P2.976 PRO | MCR-P3.91 PRO | MCR-P4.81 PRO |
| Pixel Pitch | 2.604 mm | 2.976 mm | 3.91 mm | 4.81 mm |
| LED Encapsulation Mode | SMD1415 | SMD1415 | SMD2121 | SMD2121 |
| Pixel Density | 147,456 pixels/sqm | 112,896 pixels/sqm | 65,536 pixels/sqm | 43,222 pixels/sqm |
| Module Dimension | 250 × 250 mm | |||
| Module Resolution | 96 × 96 pixels | 84 × 84 pixels | 64 × 64 pixels | 52 × 52 pixels |
| Cabinet Dimension | 500 × 500 mm / 500 × 1000 mm | |||
| Cabinet Resolution | 192 × 192 / 192 × 384 pixels | 168 × 168 / 168 × 336 pixels | 128 × 128 / 128 × 256 pixels | 104 × 104 / 104 × 208 pixels |
| Cabinet Material | Die-cast aluminum | |||
| Cabinet Weight | 7.2 kg / 12 kg | |||
| Driver IC | High-refresh-rate PWM chip | |||
| Refresh Rate | 3840 Hz | |||
| Color Temperature | Adjustable from 3000K–9800K | |||
| Contrast Ratio | 5000:1 | |||
| Brightness | ≥5000 nits | |||
| Luminance Uniformity | 97% | |||
| Color Gamut | 95%–99% DCI-P3 | |||
| Color Uniformity | ±0.003 Cx, Cy | |||
| Viewing Angle | Horizontal 160° / Vertical 140° (Optional) | |||
| Grey Scale | 16 bits | |||
| Receiving Card | Nova | |||
| Driving Method | 1/24 scan | 1/21 scan | 1/16 scan | 1/13 scan |
| Power Consumption | Max: 700 W/sqm; Average: 280 W/sqm | |||
| LED Lifetime | Up to 100,000 hours | |||
| Operating Voltage | AC100–240V, 50/60Hz | |||
| Working Temperature | -20℃ to 70℃ | |||
| Working Humidity | 10%–90% RH | |||
| Waterproof | IP65 | |||
| Support Mode | RF / S-Video / RGB / RGBHV / YUV / YC | |||
| Net Weight | 58 kg (8 in 1) / 72 kg (6 in 1) | |||
| Gross Weight | 94 kg (8 in 1) / 112 kg (6 in 1) | |||
| Case Size | 88 × 58 × 74 cm / 107 × 70 × 74 cm | |||
| Total Capacity | 0.38 cbm / 0.56 cbm | |||
Note: Specifications are subject to change without notice. Custom configurations available upon request. Contact our sales team for detailed technical documentation and CAD drawings.
One-stop Solution For Your Events
Cabinet
Truss
Back Brackets
Video Processor
Flight Case
Back Brackets
Frequently Asked Questions
Get answers to common questions about the MP-OI series outdoor LED display.
-
How to operate and use it?
-
It can by controlled by PC and Smartphone very easily. Welcome to inquiry for more information. We provide video guidance and remote assistance.
-
How many days for producing?
-
1-3 days for inventory products and 10-15 days for customized products.
-
What is the warranty?
-
5-8 years Warranty.
-
What is Price per square meter of screen?
-
Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
-
Can I customize it?
-
Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
-
What can you buy from us?
-
Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.
